Engine Block Heater - Installation

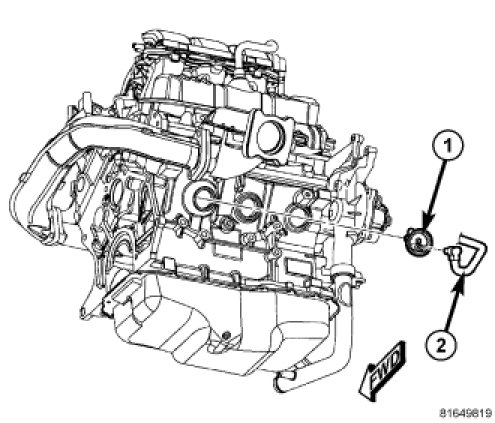

3.8L ENGINE




1. Clean block core hole and heater seat.
2. Insert heater assembly with element loop positioned upward.
3. With heater seated, tighten center screw securely to assure a positive seal.
4. Install power cord plug to heater.
5. Fill cooling system with coolant to the proper level.
