Removal
REMOVAL - TIMING CHAIN AND CAMSHAFT SPROCKET 1.
Disconnect negative cable from battery.
2.
Remove the
timing chain cover.
3.

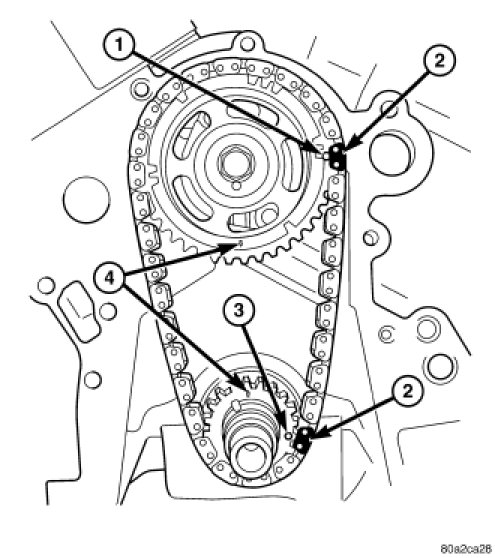

Rotate engine by turning
crankshaft until the timing marks are aligned as shown in.
4.
Remove camshaft sprocket attaching bolt.
5.
Remove the
timing chain with camshaft sprocket.
6.
Remove the crankshaft sprocket.
