Installation

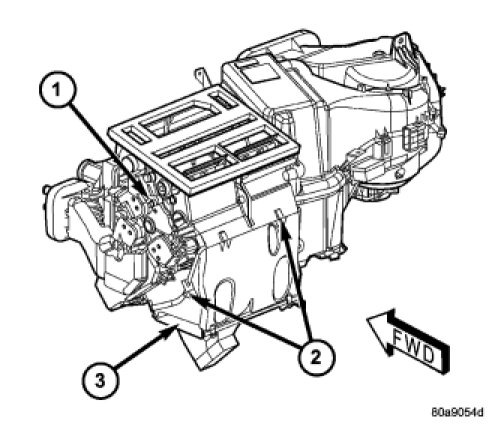

INSTALLATIONNOTE: Illustration shown with HVAC housing removed from vehicle for clarity.
1.
Position the floor distribution duct (3) to the bottom of the HVAC housing (1) and engage the duct to the housing.
2.
Install the screws (2) that secure the floor distribution duct to the HVAC housing. Tighten screws to
2 Nm (17 in. lbs.).
3.
Install the center console.
