Installation
3.8L ENGINE 1.

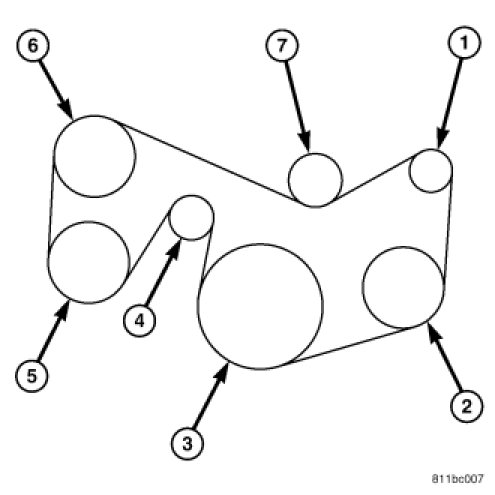

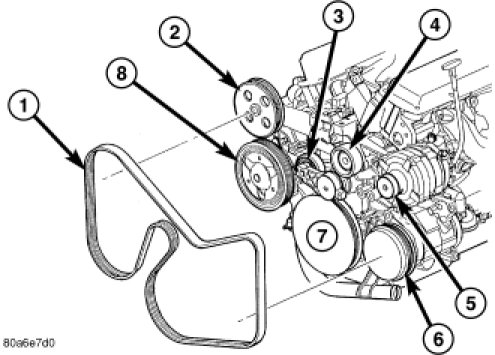

Route and position the
drive belt onto all pulleys, except for the crankshaft.
2.
Rotate belt tensioner counterclockwise until belt can be installed onto the crankshaft pulley. Slowly release belt tensioner.
3.
Verify belt is properly routed and engaged on all pulleys.
4.
Install
drive belt shield and lower vehicle.
