Removal
3.8L ENGINE 1.
Drain the cooling system.
2.
Raise vehicle on hoist and remove the belt splash shield.
3.

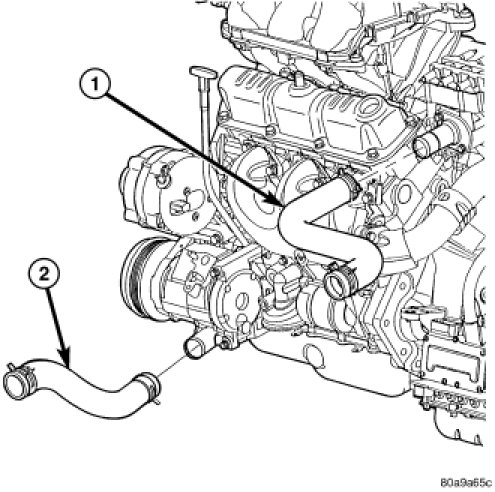

Remove the radiator lower hose from inlet tube.
4.
Remove the oil cooler outlet/heater return hose from inlet tube (only if equipped with engine oil cooler).
5.
Remove the inlet tube bolts.
6.
Remove the inlet tube. Discard the O-ring seal.
