Installation

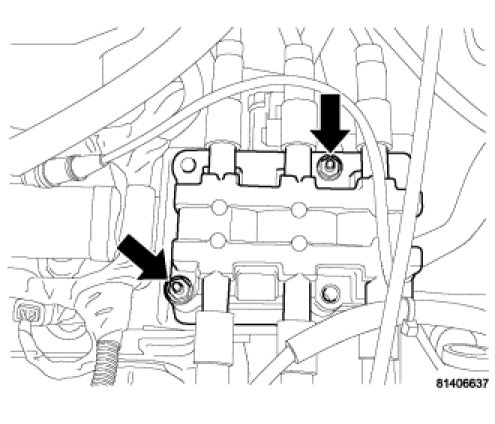

3.8L 1.
Install
ignition coil over mounting studs
2.
Connect and lock the electrical connector to
ignition coil.
3.
Install mounting nuts and tighten to
Nm 11.5 ( 105 in. lbs.).
4.
Install
ignition cables to coil assembly.
5.
Connect negative battery cable.
