Removal

3.8L




1. Disconnect negative battery cable.

2. Remove the air box assembly.

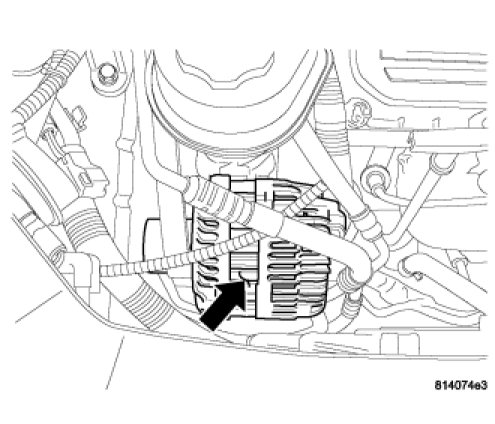

3. Generator location.




4. Unlock the field electrical connector.




5. Disconnect the field electrical connector from rear of generator.




6. Remove cover from battery cable on rear of generator.

7. Remove the positive battery cable from rear of generator.




8. Remove the accessory drive belt.




9. Remove the 3 mounting bolts for the power steering assembly.




10. Relocate the power steering assembly.




11. Remove the idler pulley/lower mounting bolt for generator. This will be removed with generator assembly.




12. Remove the rear mounting bolt.




13. Remove the upper mounting bolt.




14. Remove generator and idler pulley.
