Combination Switch

Component ID: 410
Component : SWITCH-MULTIFUNCTION

Connector:

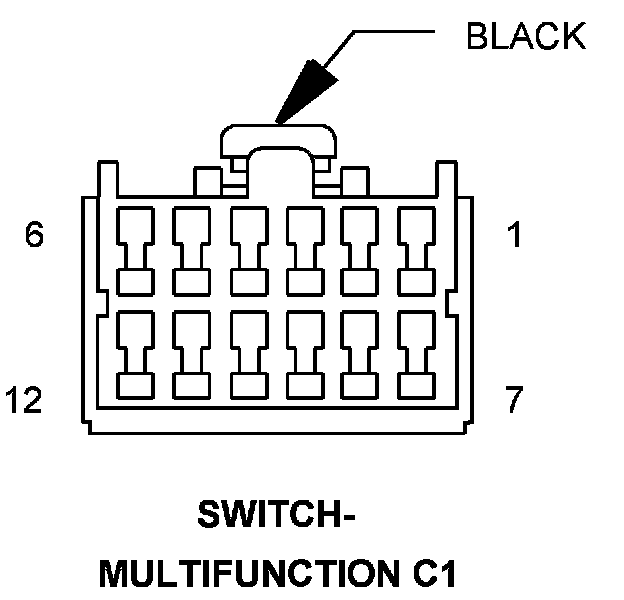

Name : SWITCH-MULTIFUNCTION C1
Color : BLACK
# of pins : 12




Pin Description Circuit
1 - -
2 - -
3 RIGHT TURN SWITCH SENSE L306 20LB/WT
4 LEFT TURN SWITCH SENSE L305 22WT/LB
5 PANEL LAMPS DIMMER SIGNAL E2 22OR/BR
6 HEADLAMP SWITCH MUX SENSE L307 22BR/WT
7 - -
8 FRONT FOG SWITCH SENSE L87 20WT/OR
9 GROUND Z102 20GY/BK
10 OPTICAL HORN SIGNAL L38 20DB/WT
11 HIGH BEAM SWITCH SENSE L37 20WT/BR
12 HEADLAMP SWITCH MUX RETURN L900 22WT/YL

Component Location - 14




Component Location - 21
