Installation
4.0L 1.
Install the 2 mounting bolts (2) into the
EGR valve and new gasket.
2.
Loose install the
EGR valve to cylinder head.
3.

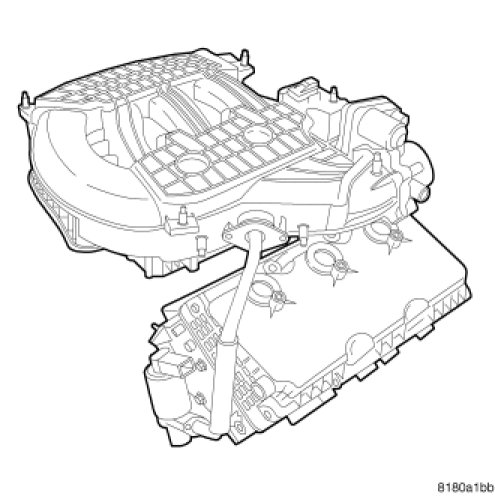

Loose install the
EGR tube to
EGR valve and intake manifold.
4.
Tighten the
EGR tube to
EGR valve and intake manifold bolts to
13 Nm (115 in. lbs.) torque.
5.
Connect and lock the electrical connector for the
EGR valve.
6.
Connect negative battery cable.
