Installation
INSTALLATION 1.

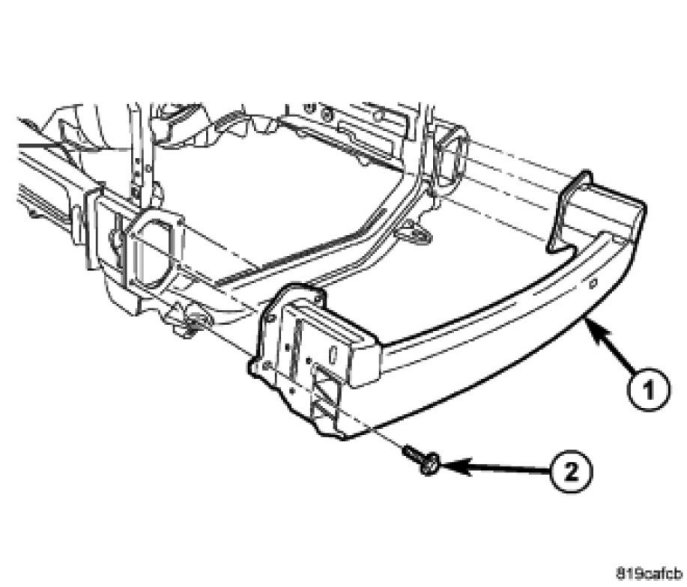

Place
bumper reinforcement up to vehicle and install fasteners. Tighten to
27 Nm (239 inch lbs.).
2.

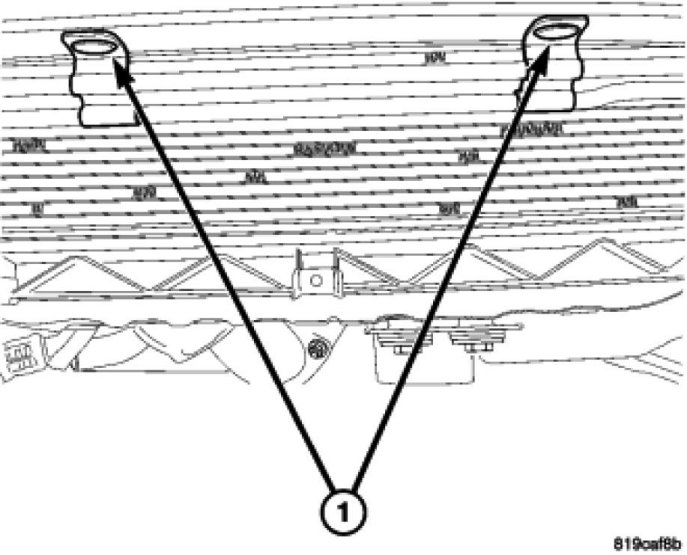

Install coolant line push pins to
bumper.
3.
Install ambient temperature sensor push pin to
bumper.
4.
Install horns and connect electrical connectors.
5.

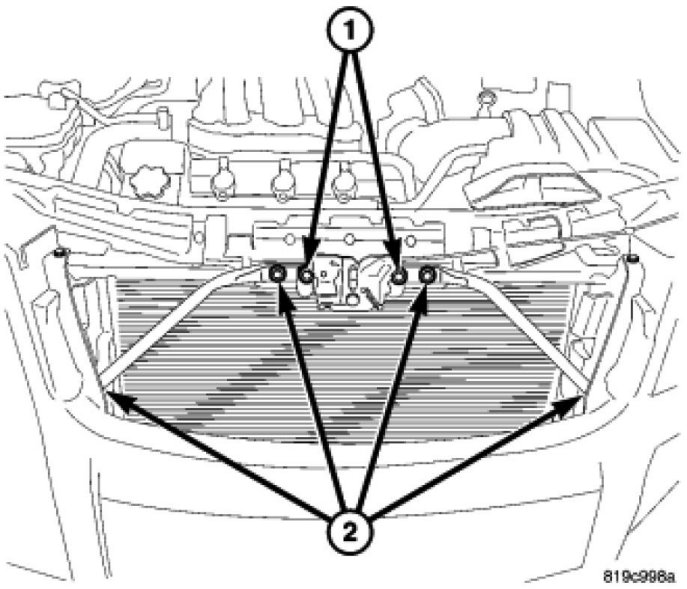

Install
hood latch fasteners (1).
6.
Install braces and fasteners (2).
7.
Install fascia.
