Installation

INSTALLATION
1. Install carpet into vehicle through passenger door opening.

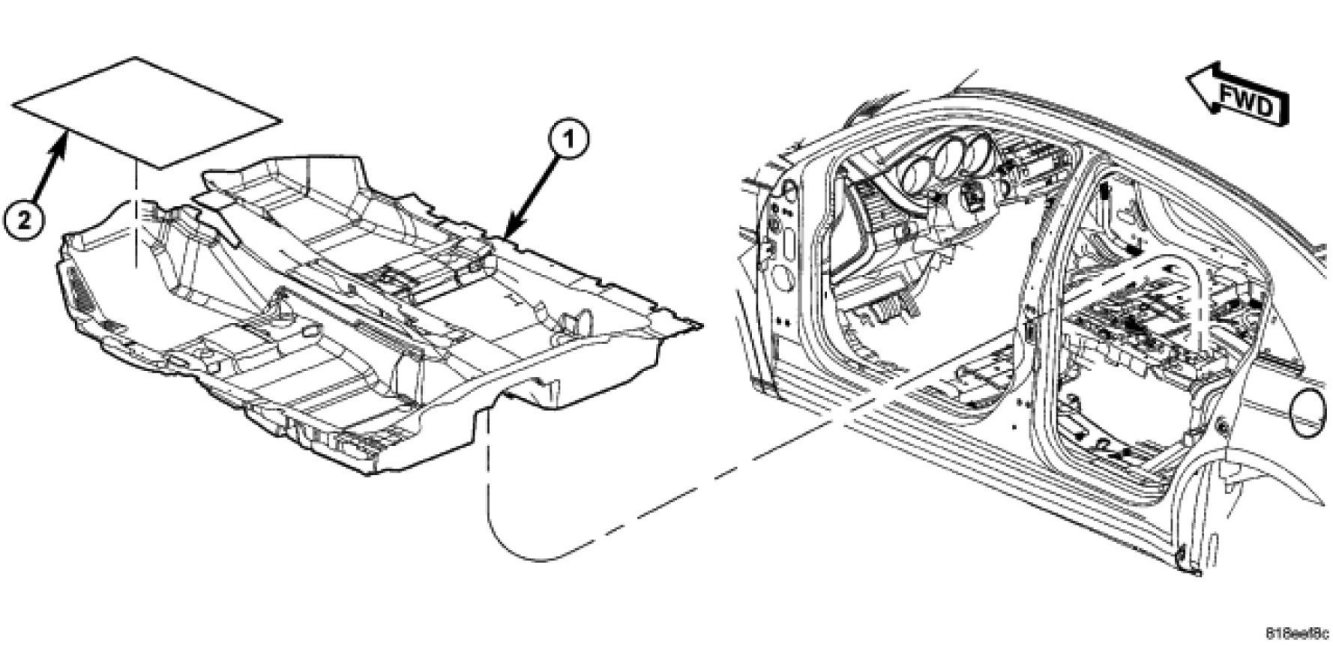

2. Unfold carpet (1) into position.

3. Install carpet behind brake pedal, accelerator pedal, and HVAC.

4. Install center console.

5. Install cowl trim panels.

6. Install B-pillar trim panels as necessary.

7. Install amplifier on passenger side of floor pan, if equipped.

8. Install front seats.

9. Install rear seat cushion.

10. Install door opening sill plates.
