Installation

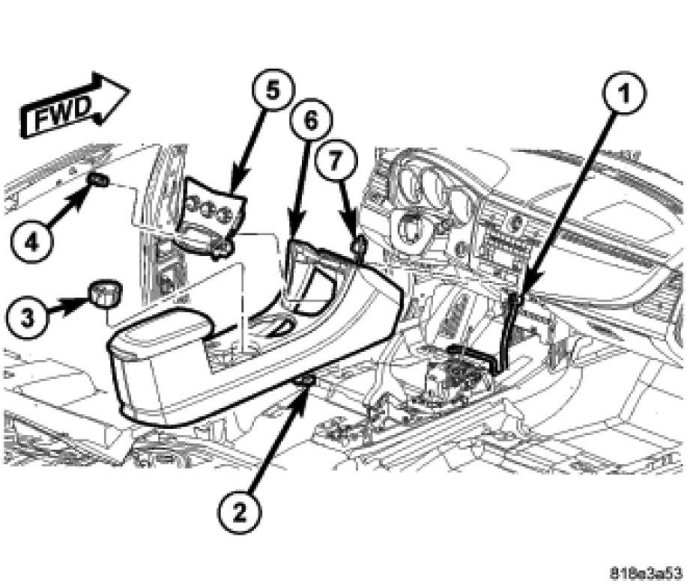

INSTALLATIONNOTE: Chrysler shown, Dodge similar.
1.
If equipped, connect center console housing wire connector (2) with instrument panel connector.
2.
Place
console housing (6) over shifter lever ensuring console tabs seat properly.
3.
Install screws (6).
4.
Install screws (5)
5.
Install
console bezel (1).
6.
Replace shift bezel and knob.
