Installation
INSTALLATION - FOLDING BACKNOTE: Rear seat back cushions are serviced as an assembly.
1.
Place the four
seat back brackets over the body mounted weld studs and position seat back in vehicle.
2.
Engage folding rear
seat back latch.
3.

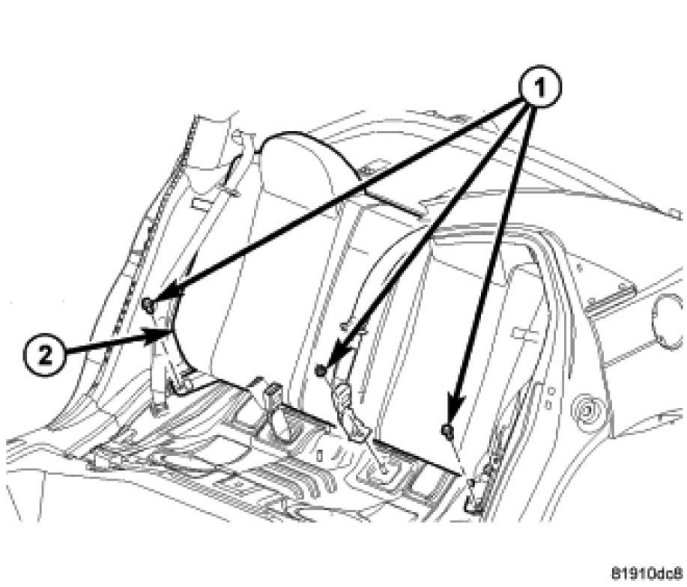

Install the outer
seat back bracket nuts (1) and tighten to
100 Nm (74 ft. lbs.).
4.
Install the rear seat buckles and belt anchors.
5.
Install rear seat cushion.
