Removal

REMOVAL - INTAKE MANIFOLD LOWER

1. Release fuel system pressure.
2. Remove upper intake manifold.
3. Disconnect electrical connectors from the fuel injectors.
4. Remove fuel supply hose from fuel rail
5. Remove screw attaching fuel rail support bracket to the throttle body support bracket.
6. Remove bolts attaching fuel rail.

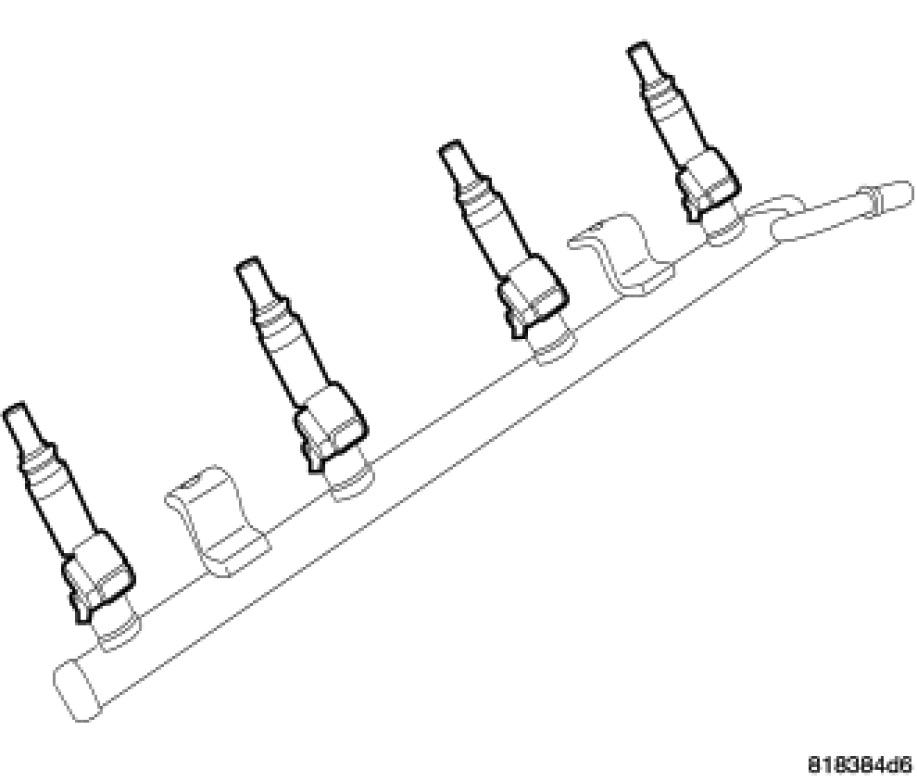

7. Remove fuel rail and injectors as an assembly.

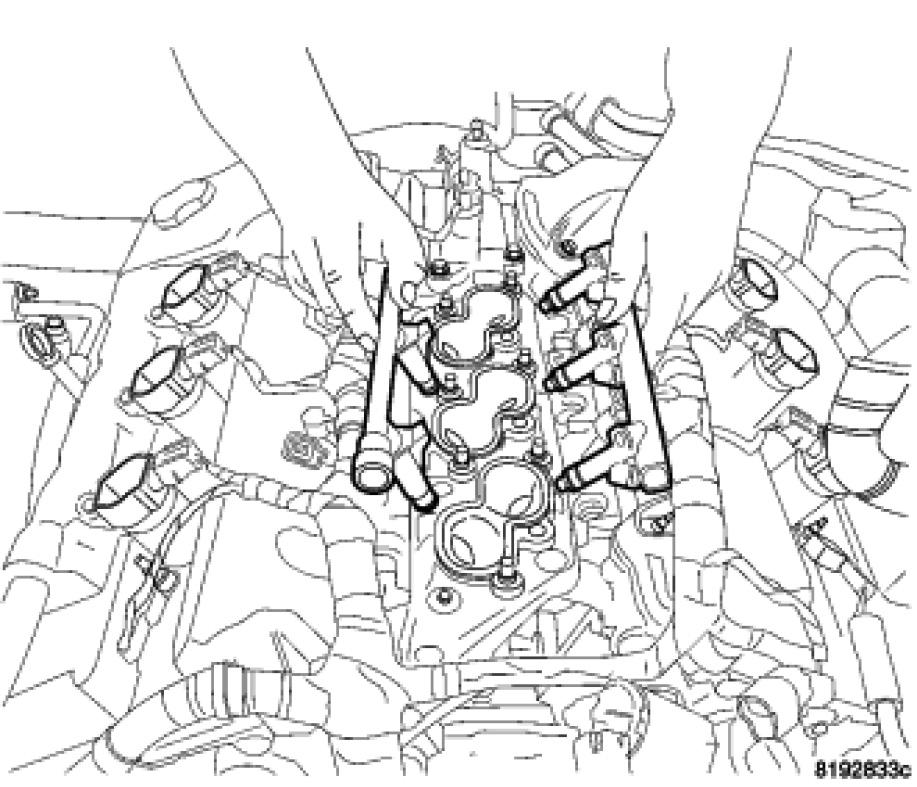

8. Remove manifold attaching bolts.
9. Remove lower manifold.
10. Inspect manifold.
