Installation
INSTALLATION 1.
Install
air cleaner housing straight down on locating pins.
2.
Install

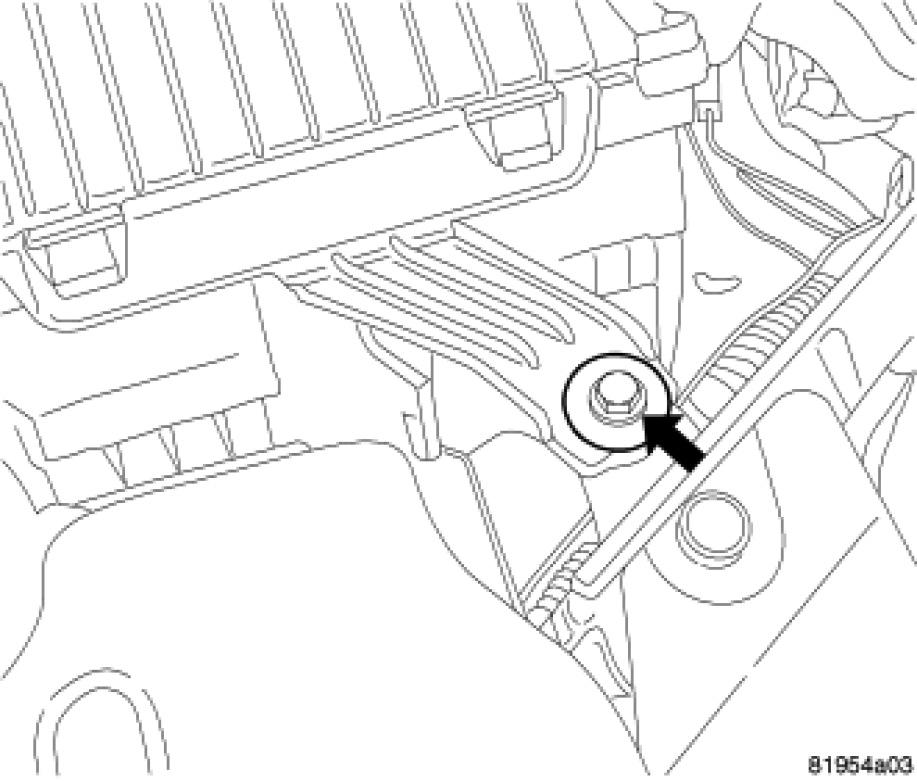

air cleaner housing hold down fastener and tighten.
3.

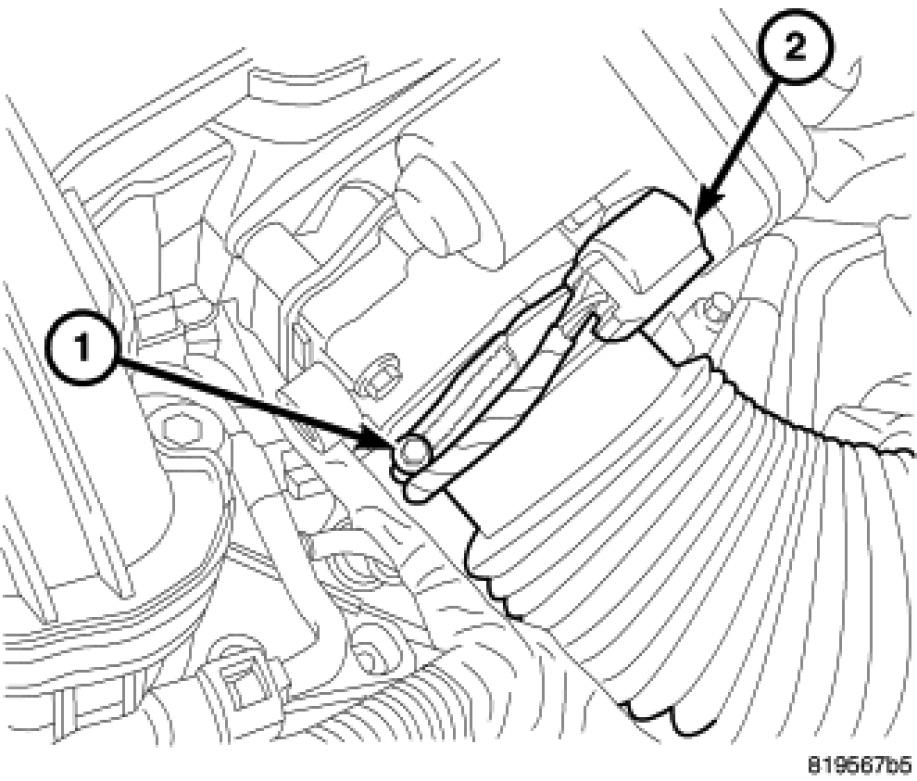

Install throttle body air inlet hose (1) to throttle body. Tighten hose clamp.
4.

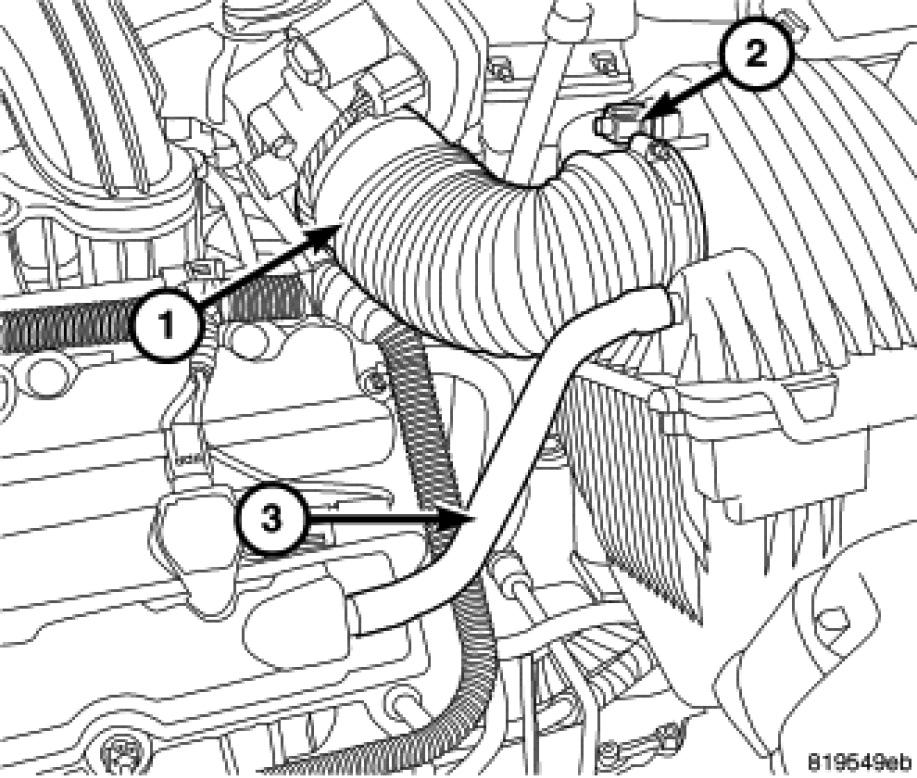

Connect fresh air makeup hose (1).
5.
Connect inlet air temperature sensor electrical connector (2).
6.
Connect negative battery cable.
