Removal
REMOVAL 1.
Disconnect negative battery cable.
2.

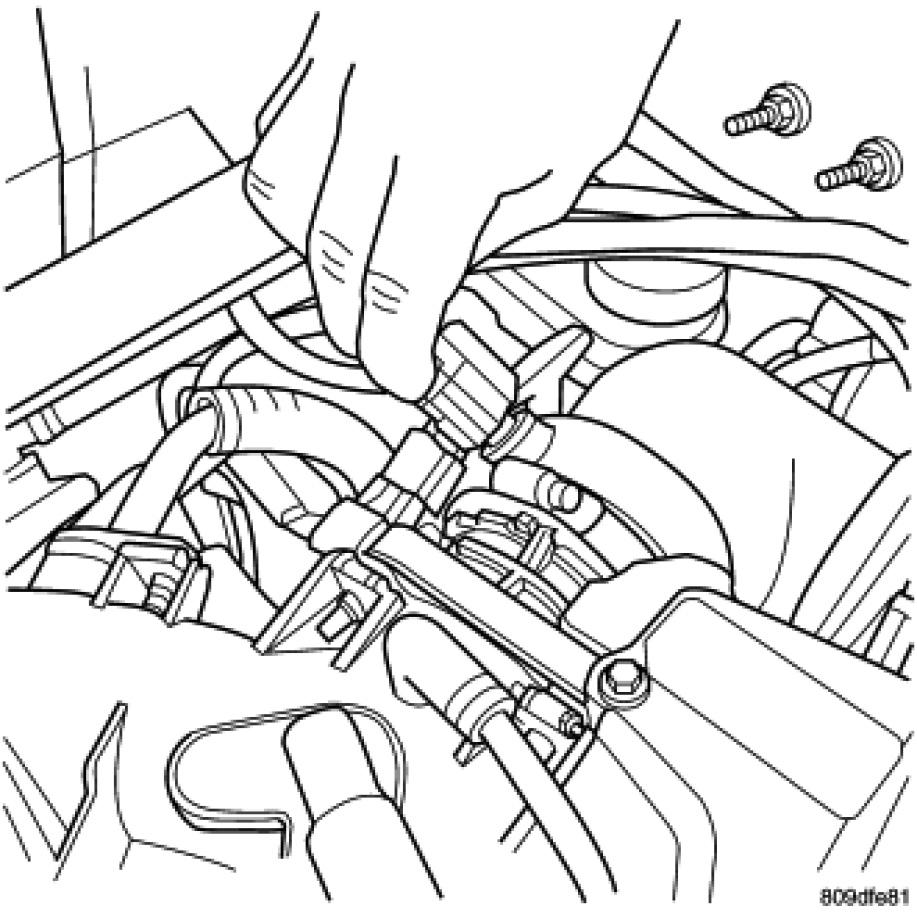

Disconnect inlet air temperature sensor electrical connector.
3.

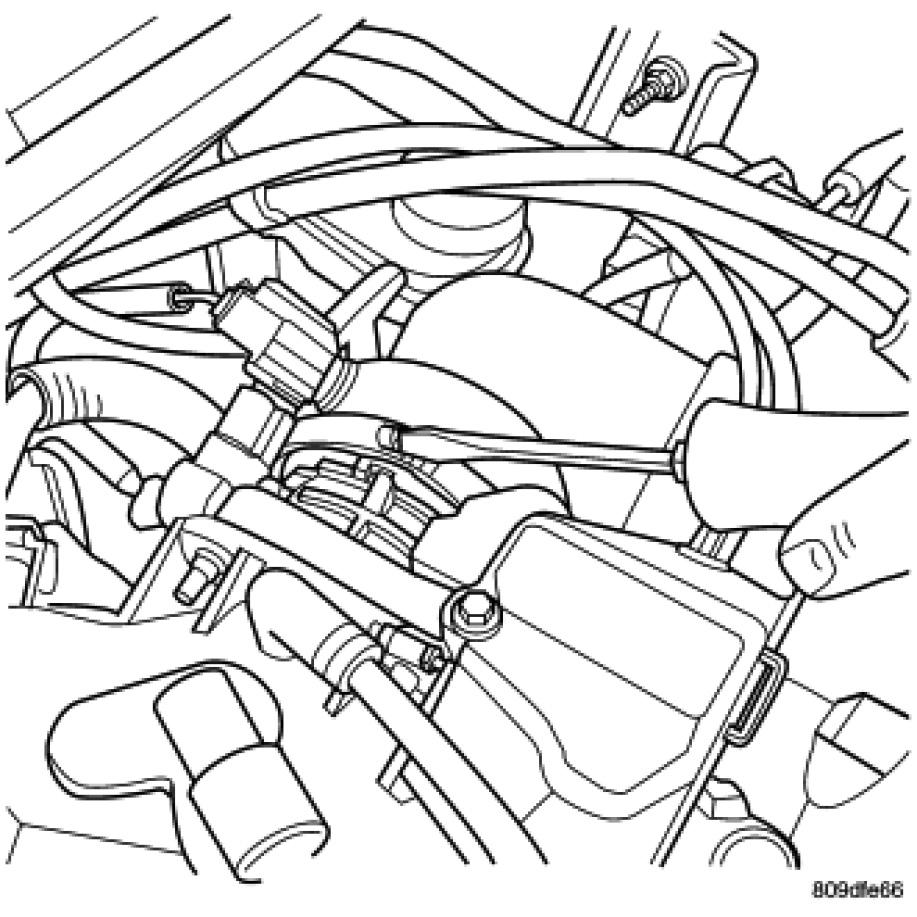

Disconnect fresh air makeup hose from throttle body air inlet hose.
Loosen clamp at throttle body.
4.
Remove hose from throttle body.
5.

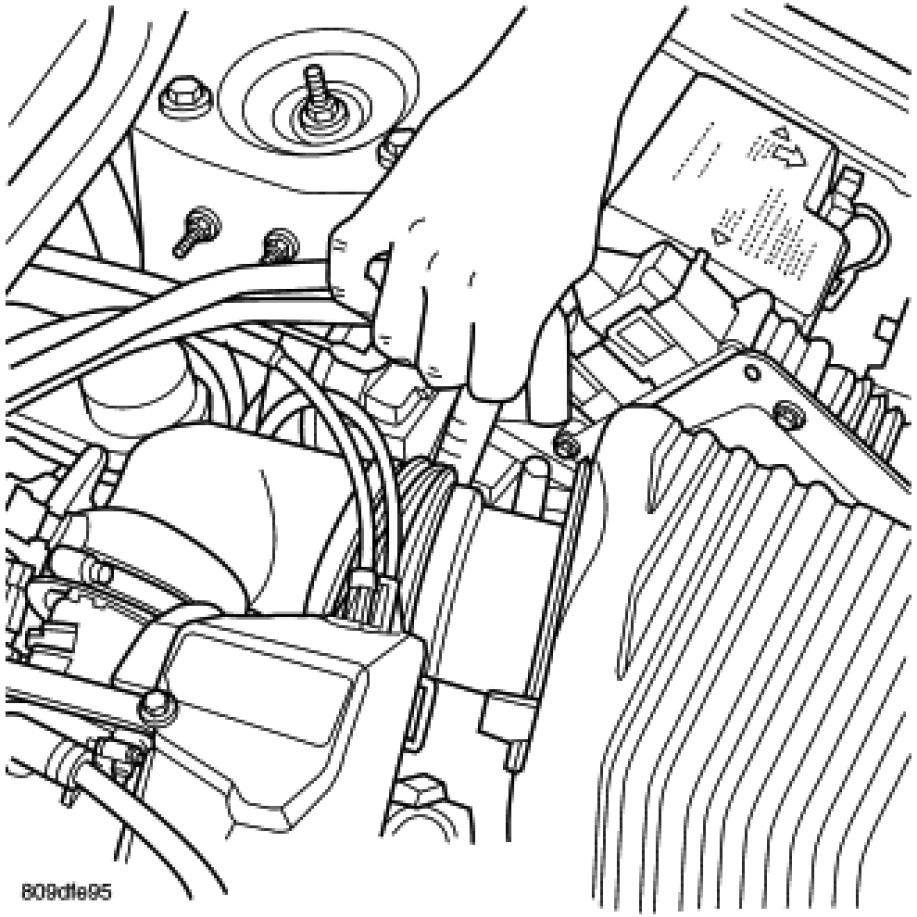

Remove nut on bracket that holds
air cleaner housing.
6.
Pull
air cleaner housing straight up off of locating pins.
