3.5L Engine
3.5L ENGINE 1.

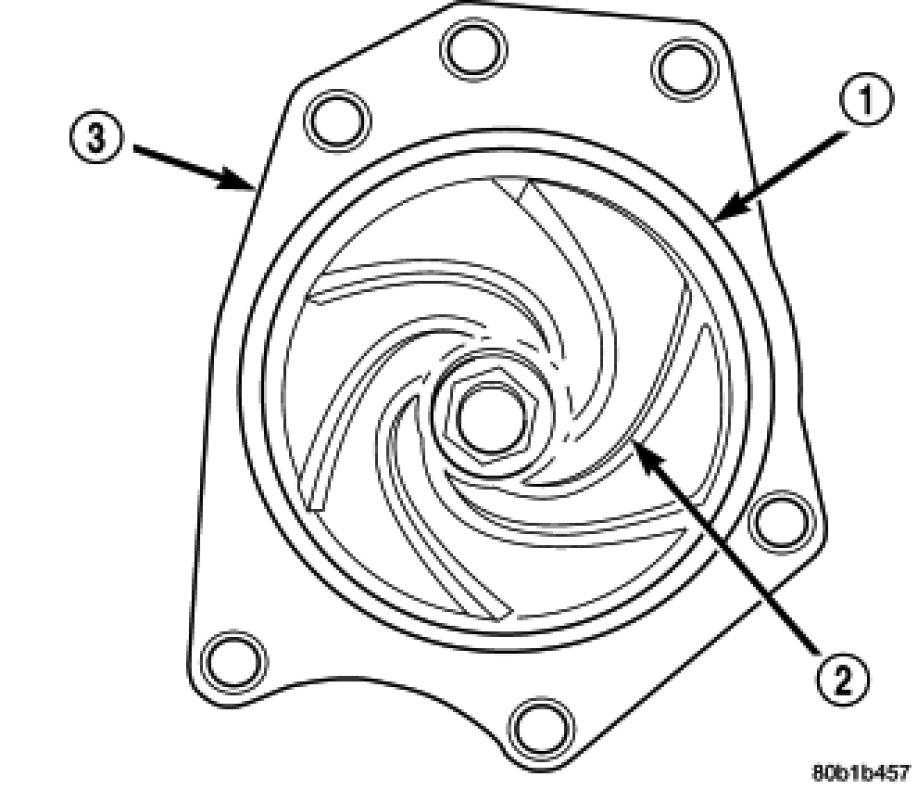

Clean all O-ring surfaces on pump and cover.
2.
Apply Mopar(R) Dielectric Grease or the equivalent silicone grease to the O-ring to facilitate assembly. Install new O-ring on water pump.
3.
Position water pump to engine.
4.
Install mounting bolts and tighten to
12 Nm (105 in. lbs.). 5.
Install
timing belt.
6.
Fill
cooling system.
