System Specifications

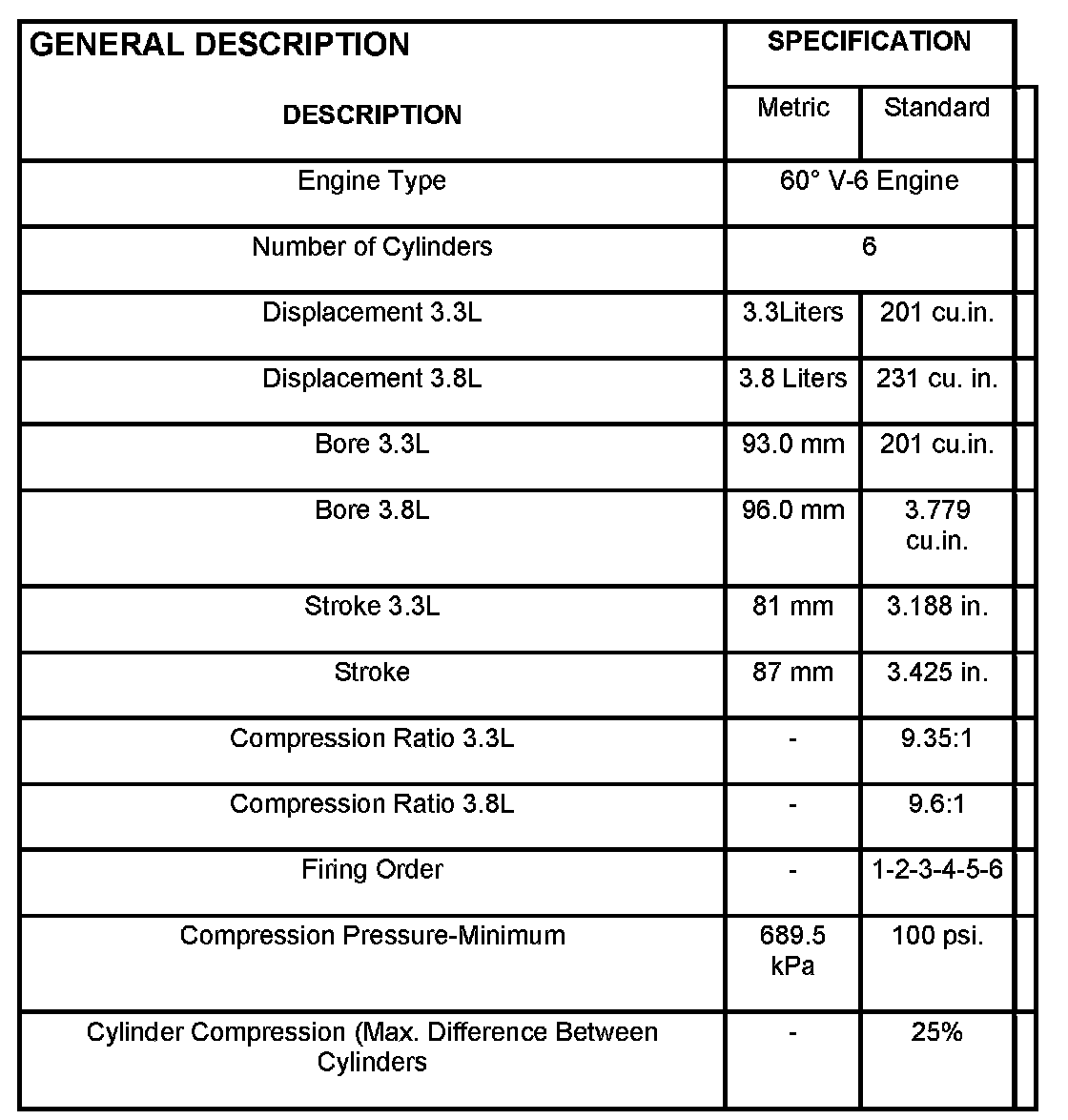

General Description:





General Description

Cylinder Block:





Cylinder Block

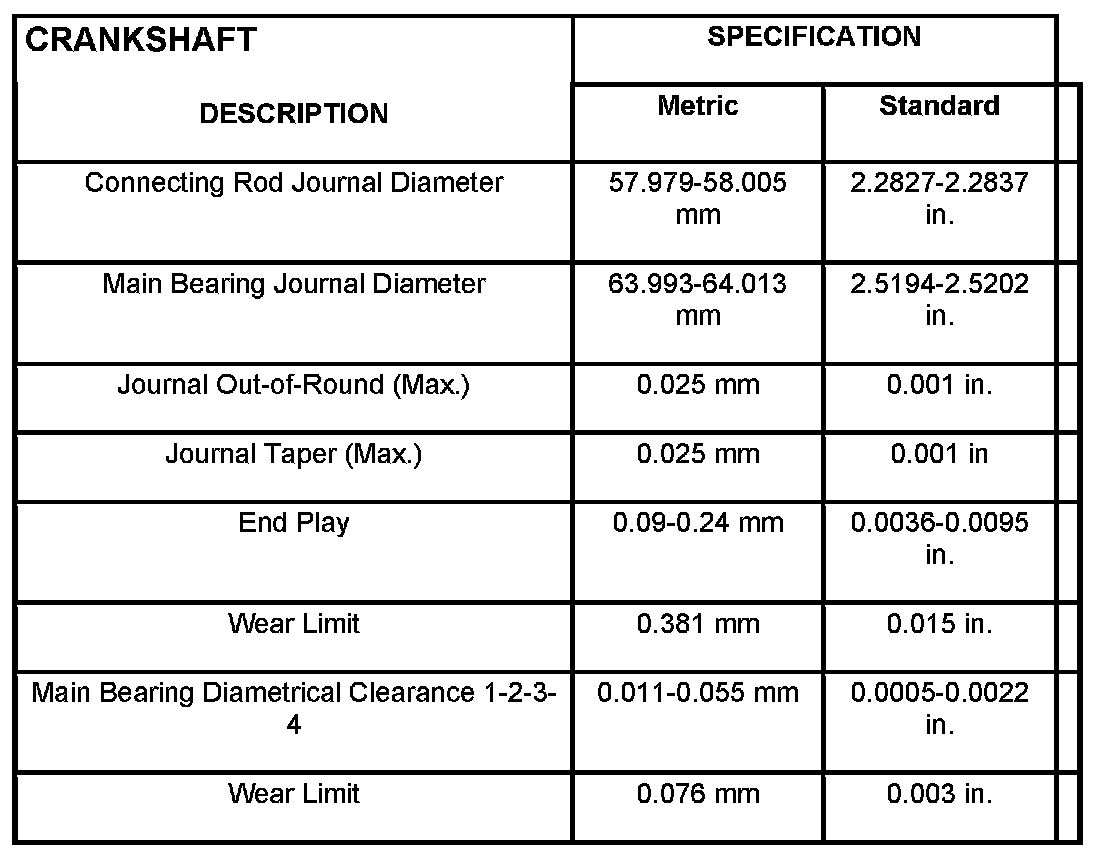

Crankshaft:





Crankshaft

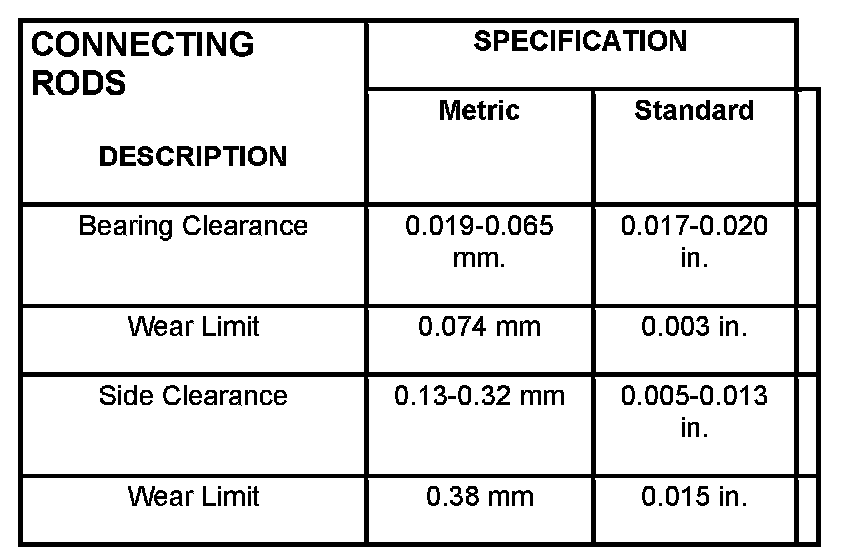

Connecting Rod:





Connecting Rods

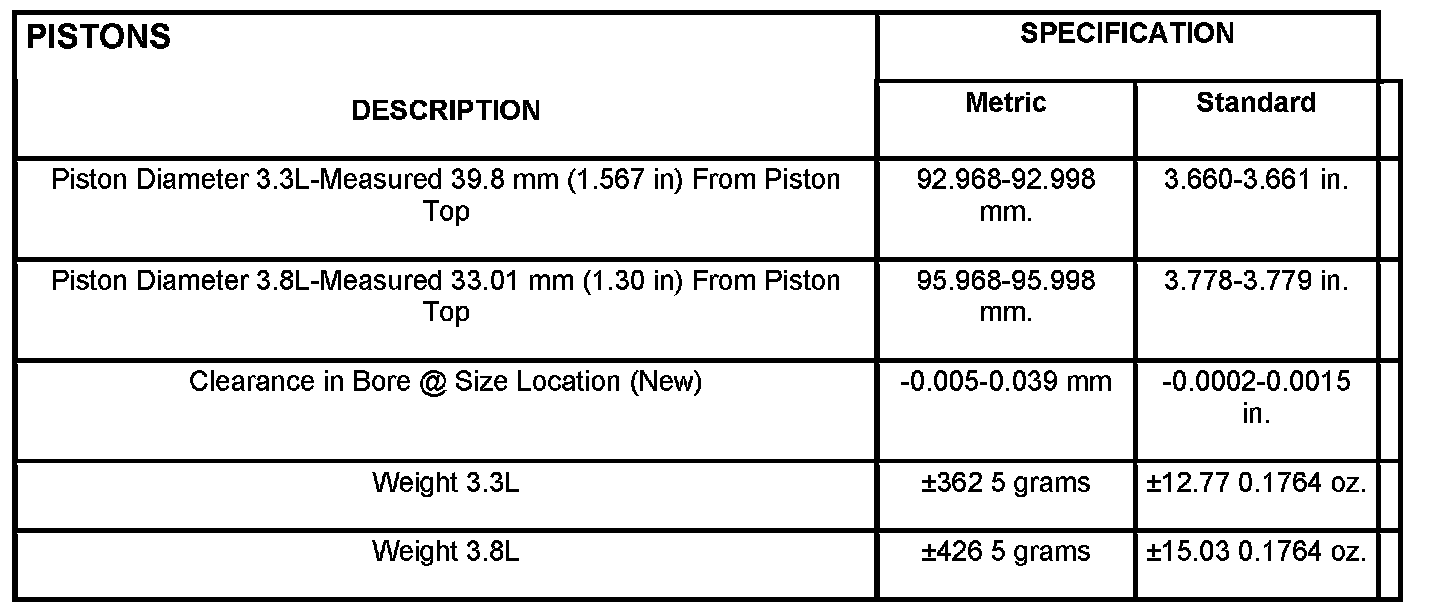

Pistons:





Pistons

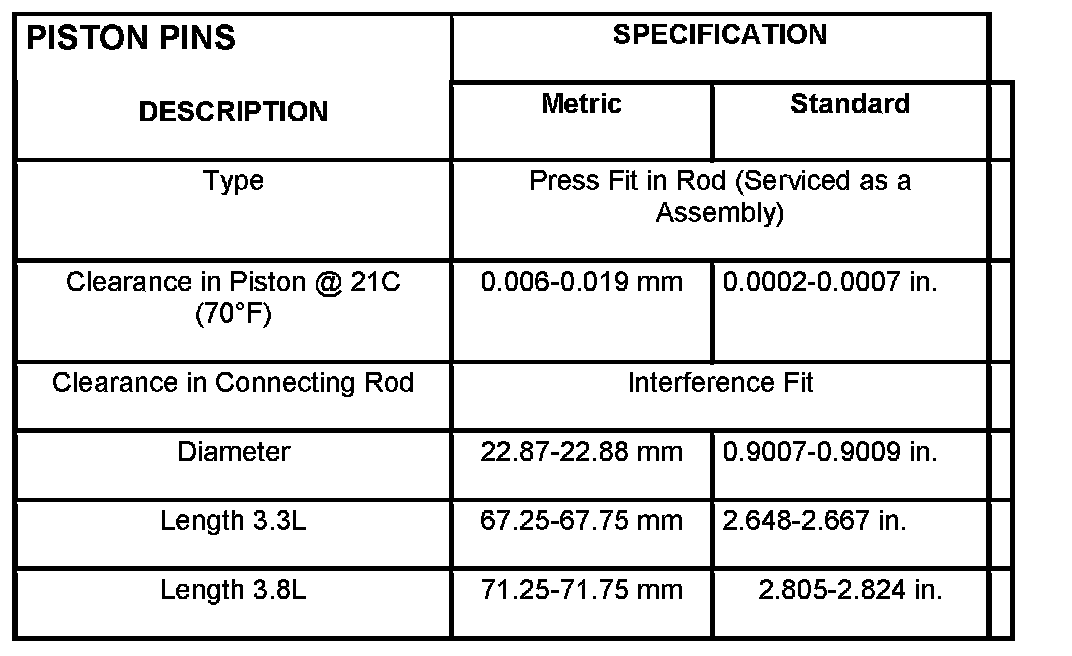

Piston Pins:





Piston Pins

Piston Rings:





Piston Rings

Connecting Rod Cap-Nuts 54 Nm + 1/4 turn (40 ft. lbs.) + 1/4 turn

Cracked Connecting Rod Cap- Bolts 54 Nm (40 Ft. lbs.) plus 1/4 turn








Crankshaft Main Bearing Cap-Bolts 41 Nm + 1/4 turn (30 ft. lbs.) + 1/4 turn

Crankshaft Main Bearing Cap Cross Bolts (3.8L) 61 Nm (45 Ft. Lbs.)

Crankshaft Damper-Bolt 54 Nm (40 Ft. Lbs.)
