Service Specifications






3.3/3.8L ENGINE

General Description:





General Description

Cylinder Block:





Cylinder Block

Crankshaft:





Crankshaft

Connecting Rod:





Connecting Rod

Pistons:





Pistons

Piston Pins:





Piston Pins

Piston Rings:





Piston Rings

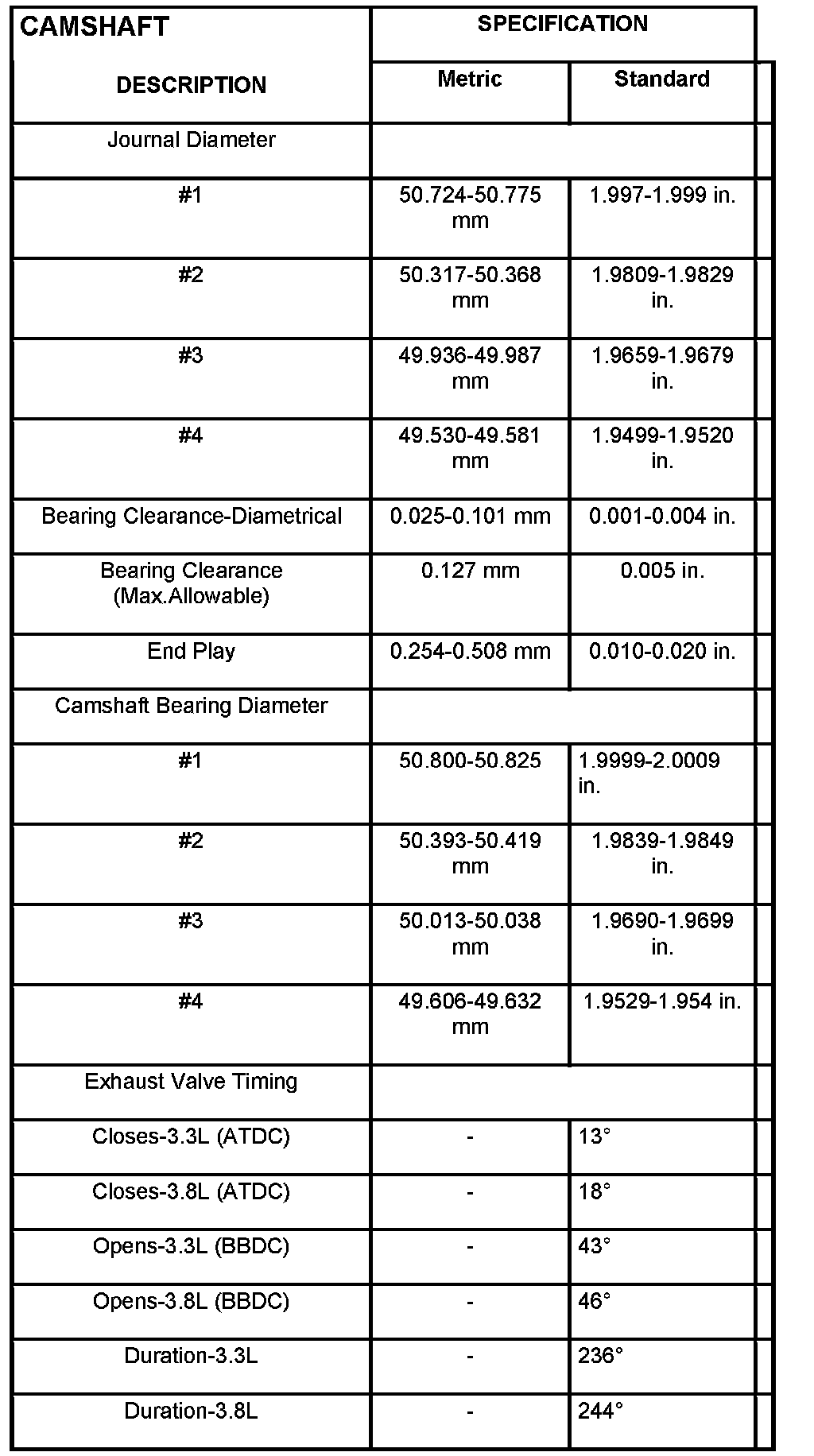

Camshaft (Part 1):





Camshaft (Part 1)

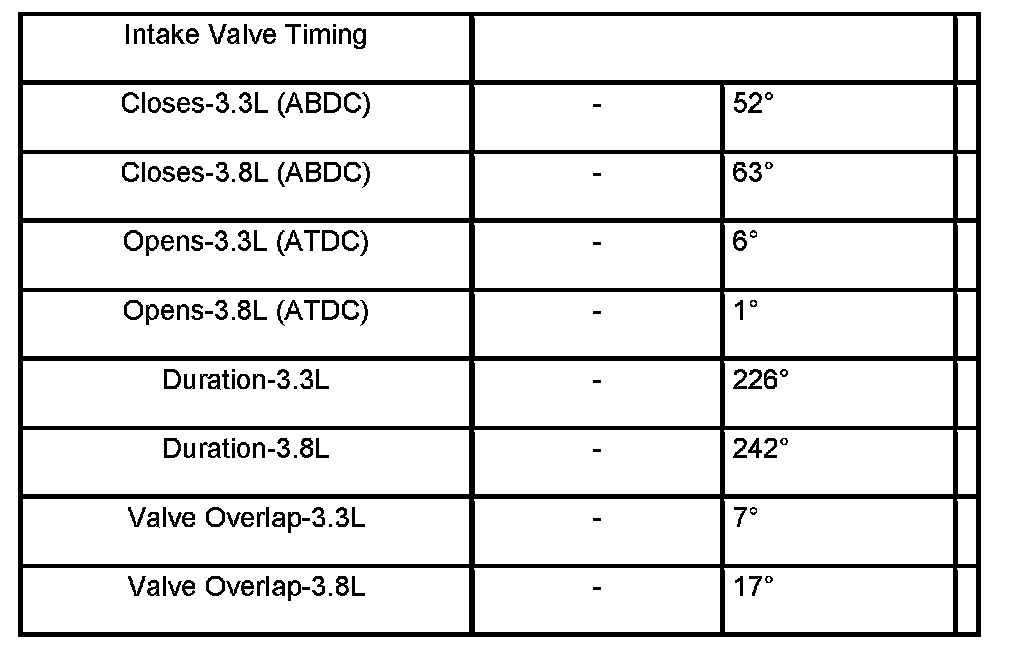

Camshaft (Part 2):





Camshaft (Part 2)

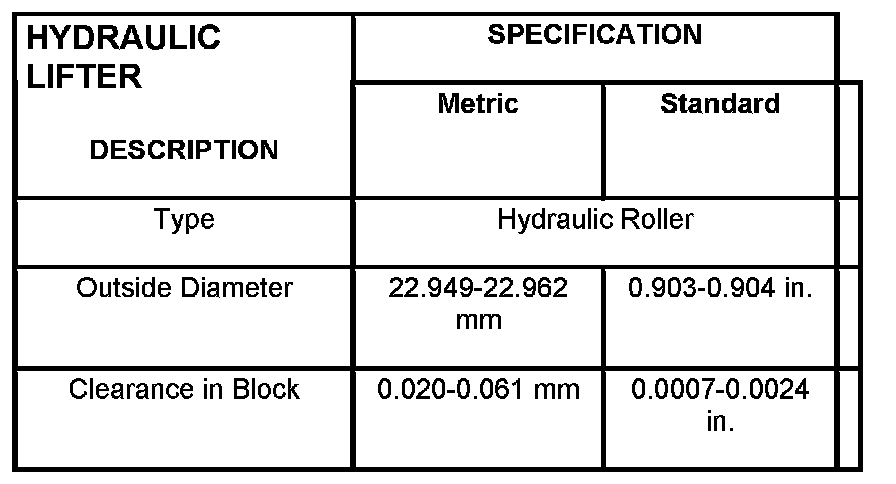

Hydraulic Lifter:





Hydraulic Lifter

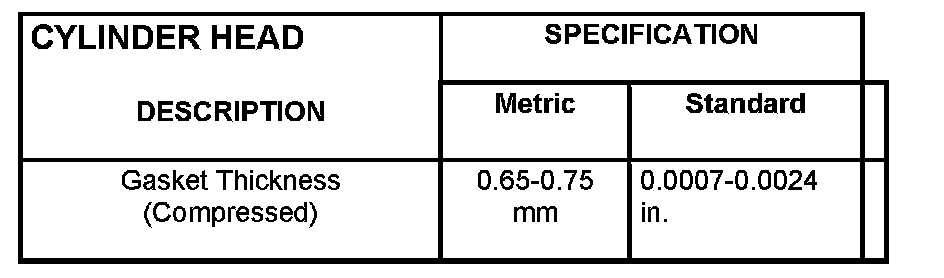

Cylinder Head:





Cylinder Head

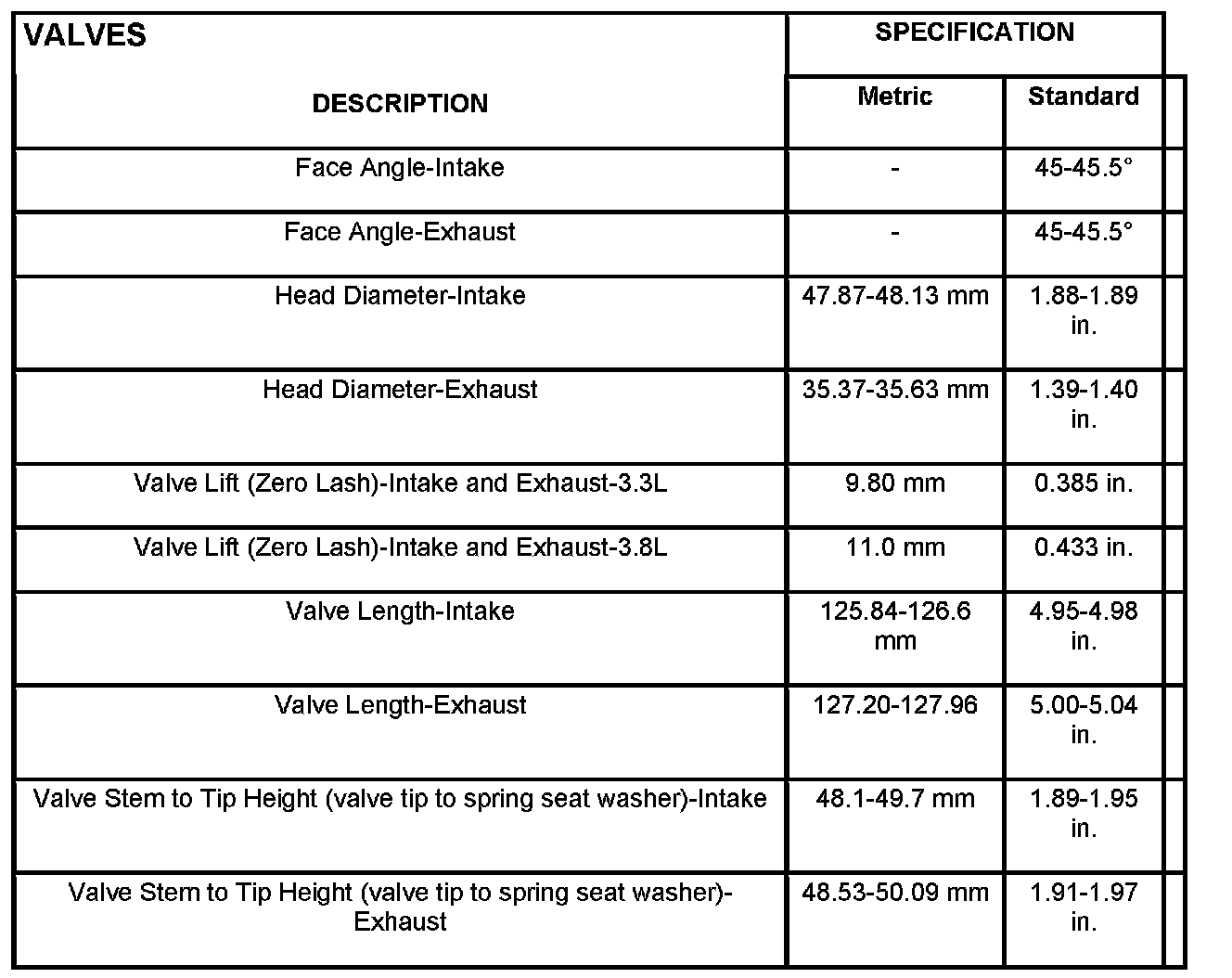

Valves:





Valves

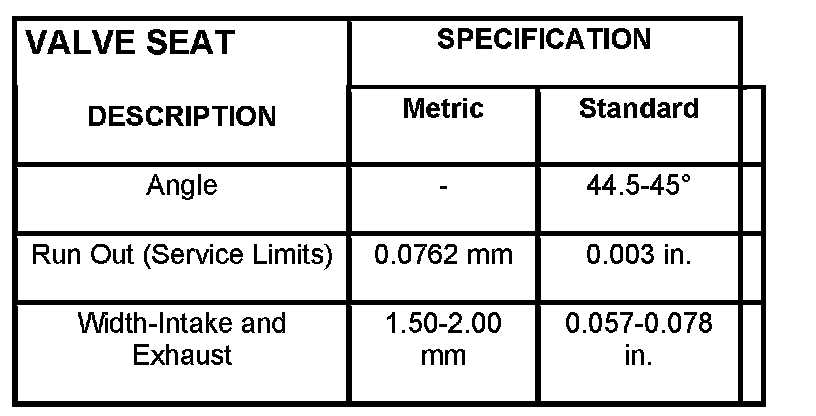

Valve Seat:





Valve Seat

Valve Guide:





Valve Guide

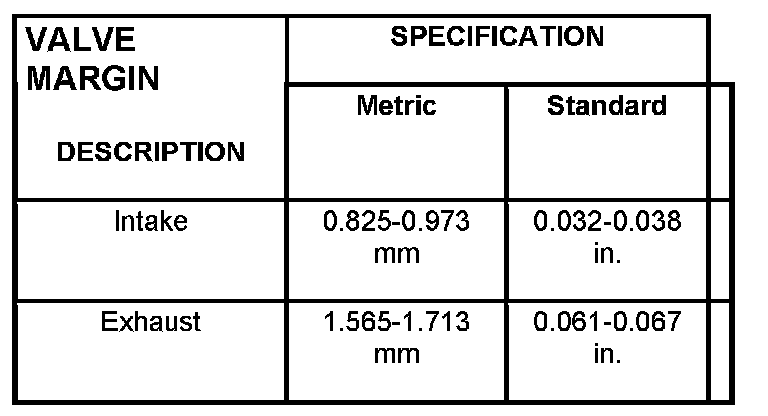

Valve Margin:





Valve Margin

Valve Stem Diameter:





Valve Stem Diameter

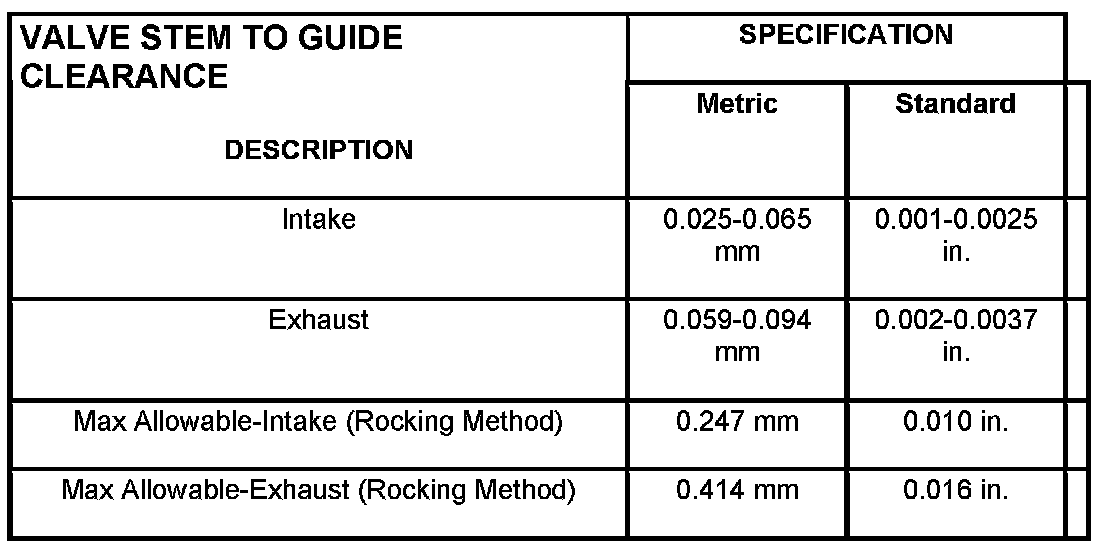

Valve Stem To Guide Clearance:





Valve Stem To Guide Clearance

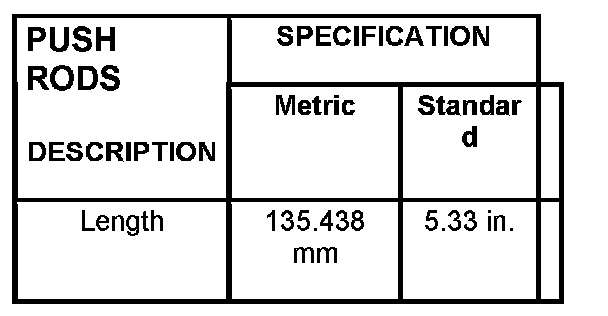

Push Rods:





Push Rods

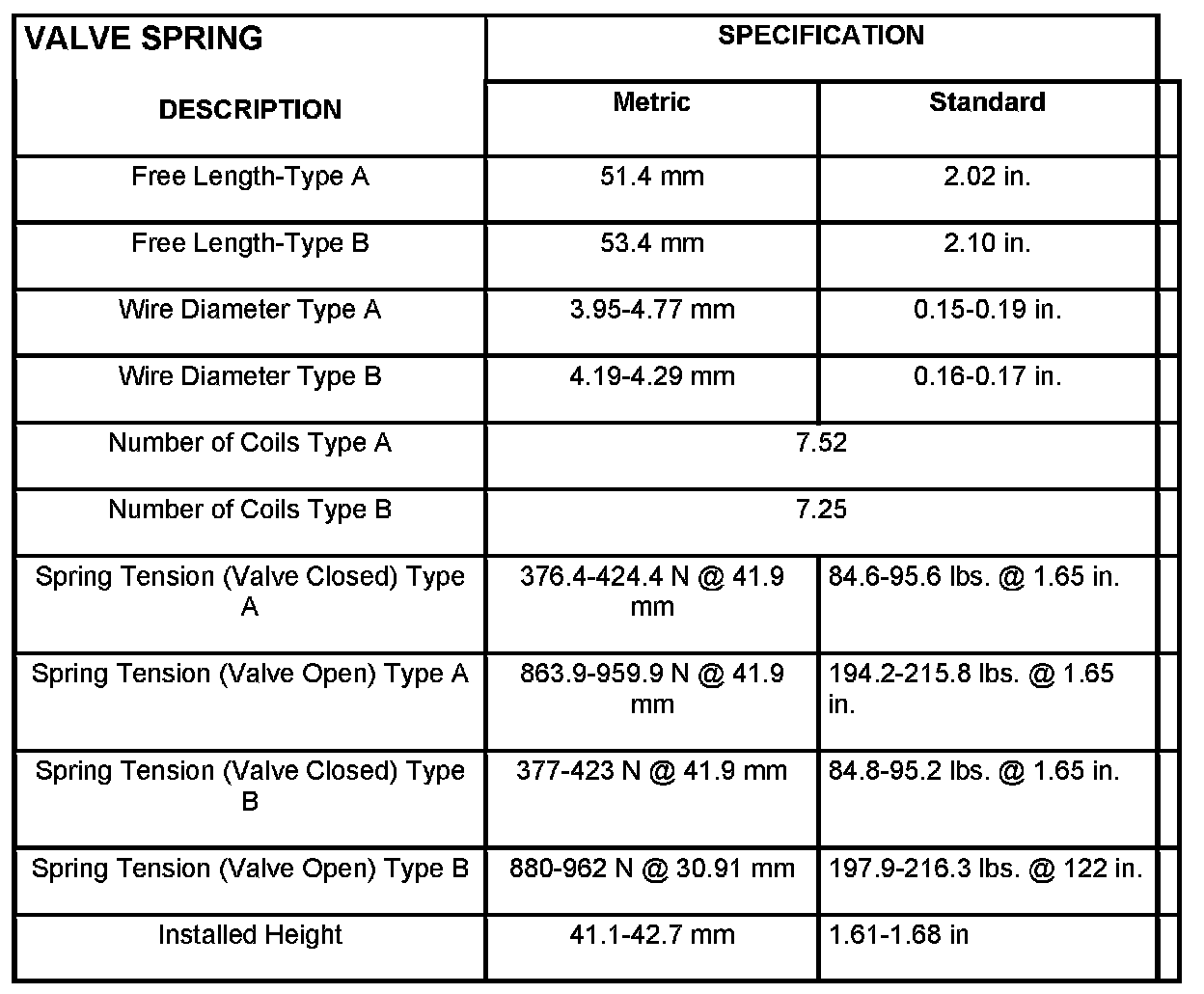

Valve Spring:





Valve Spring

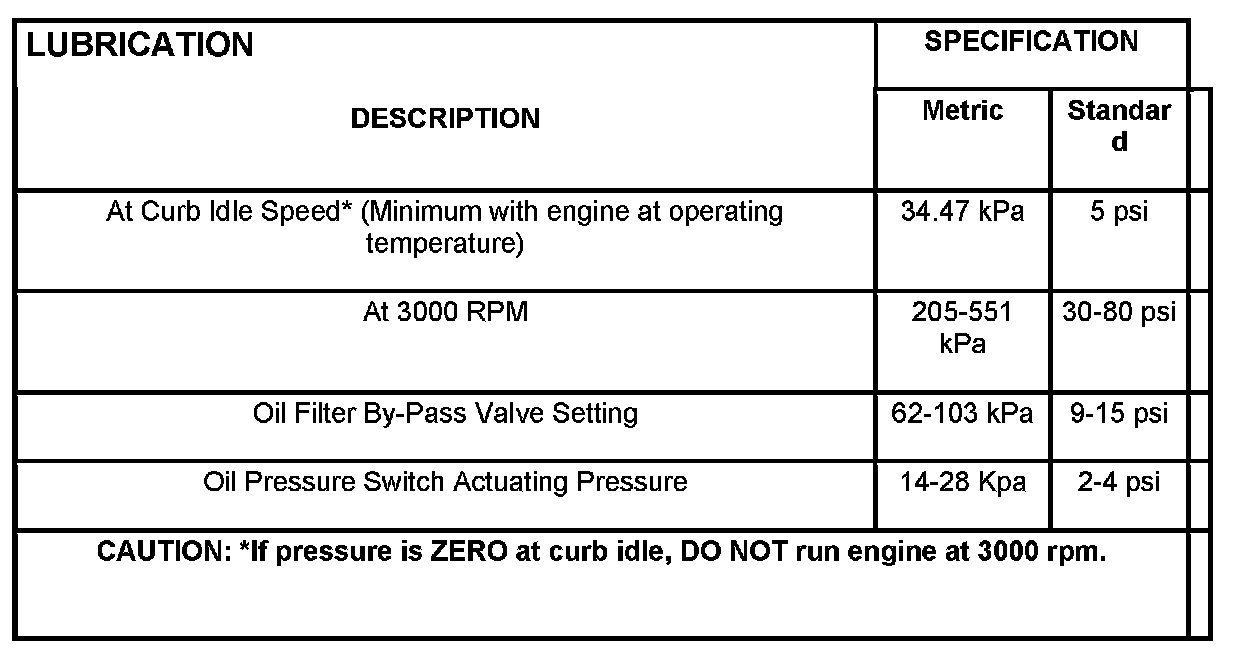

Lubrication:





Lubrication

Oil Pump:





Oil Pump
