SLA Control System (MIL Request)







P0705 - SLA CONTROL SYSTEM (MIL REQUEST)

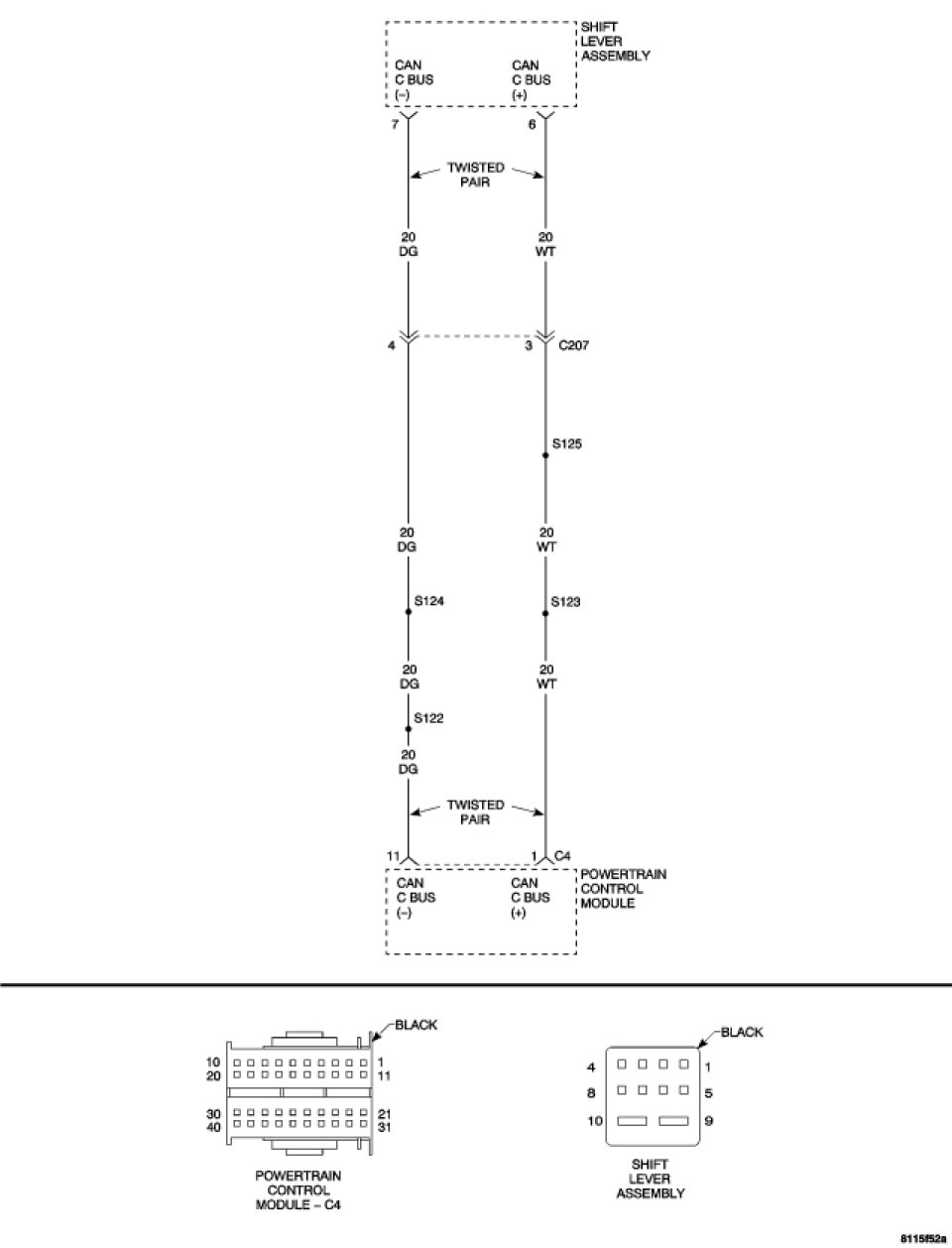

For a complete Transmission Control Module Circuit Diagram, [1][2]Automatic Transmission/Transaxle.

Diagnostic Test

1. DTC PRESENT IN SHIFT LEVER ASSEMBLY (SLA)
This is an informational DTC letting you know that a DTC(s) is stored in the SLA.
Using the scan tool, read the SLA DTC(s) and perform the appropriate procedure.
Erase this DTC from the PCM after all SLA DTC(s) have been repaired.
PCM Diagnostic Information complete.

Continue

- Test Complete.
