Installation
INSTALLATION 1.

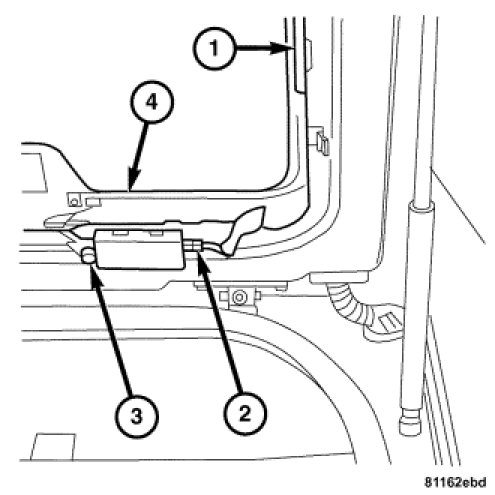

Install the rear window antenna module to the liftgate and attach with the retaining screw (3) and secure.
2.
Install the rear window antenna module harness connectors (2).
NOTE: Use care when routing harnesses and allow sufficient clearance near trim panel pinch points. 3.
Install the liftgate interior trim panel.
Service and Repair.
4.
Connect the negative battery cable.
