Installation







INSTALLATION

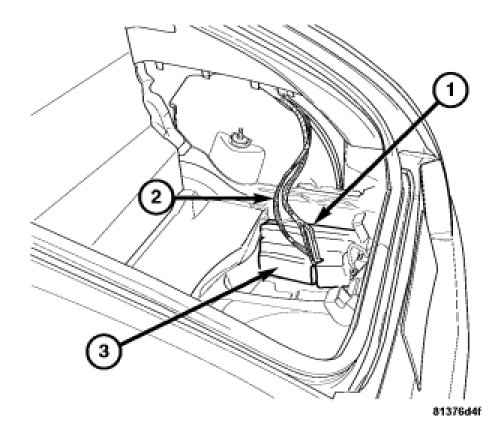

1. Install the central locking pump/security system module (3) into the trunk and connect the air lines (2) and the electrical harness (1).
2. Install the central locking pump/security system module into sound deadening foam covering and slide it back into place.

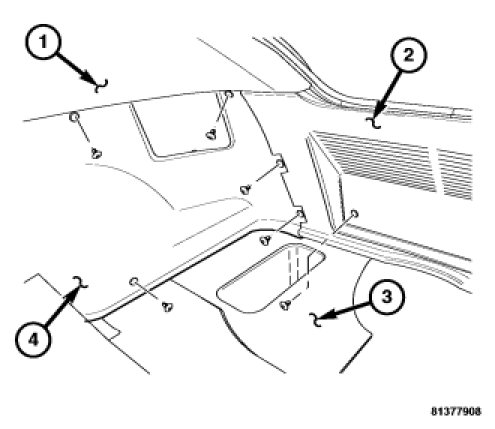

3. Install the right half of the trunk floor covering (3).
4. Install the rear interior trim panel (2).
5. Install the right side interior trim panel (4).
6. Install the right upper trim panel (1).
7. Install the trunk floor carpet.
8. Connect the negative battery cable.
