Installation

INSTALLATION

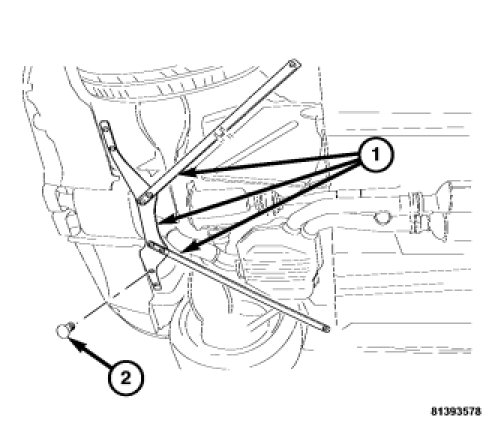

1. Install the brace (1) to the vehicle.
2. Install the bolts (2) to the vehicle.

NOTE: Final torque must be made at curb weight.

3. Lower the vehicle.
4. Tighten the bolts to 60 Nm (44 ft. lbs.).
