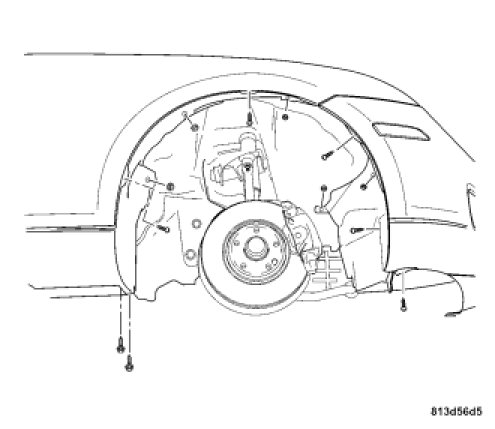

Right Front Wheelhouse Splash Shield - Installation
INSTALLATION 1.
Install the splash shield onto the vehicle.
2.
Install the two retaining screws from the lower side of the rocker panel.
3.
Install the five plastic retainer nuts and the five retainer screws from the wheelhouse splash shield.
4.
Install the right front tire and wheel assembly.
