Installation

INSTALLATION

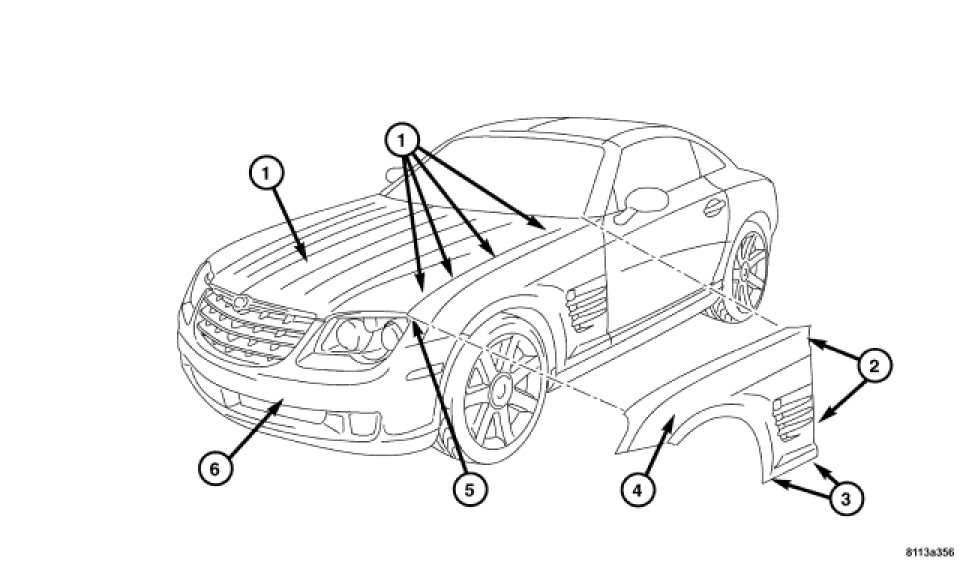

1. Position the front fender (4).
2. Install the four bolts (1) attaching the fender to the inner support.
3. Install the screw (5) on the top front of the fender.
4. Install the bolts (3) on the lower portion of the rear of the fender.
5. Install the bolts (2) on the fender attaching it to the A-pillar.
6. Install the front fascia (6). Front Fascia - Installation.
7. Close the hood (7).
8. Align the fender. .
