Ash Tray
ASH TRAY 1.
Connect the ashtray courtesy light harness connector (1).
2.

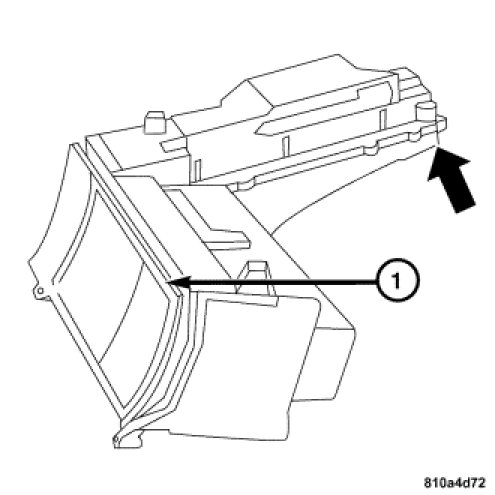

Install the ashtray housing (1) to the right and push it toward the left.
3.
Install the screws (1-3) attaching the ashtray (2) to the center console.
4.
Install the cover (1) on the center console.
Center Console - Installation.
5.
Install the cover around the shift lever.
Center Console - Installation.
