Center Console (Front)







CENTER CONSOLE (FRONT)





NOTE: When installing, insert the insulating mat, expose the electric wires and insert the panel into the side insert tabs on the center console.

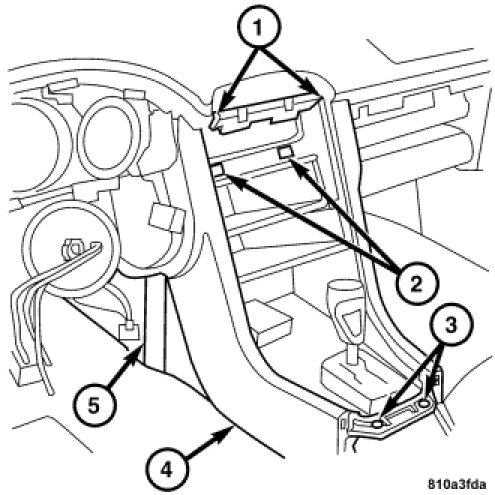

1. Install the center console (4) upward into the top section of the instrument panel.
2. Install the screws attaching the center console to the rear center console (3), air duct (2) and instrument panel top section (1).




3. Install the A/C heater control module (2). Installation.

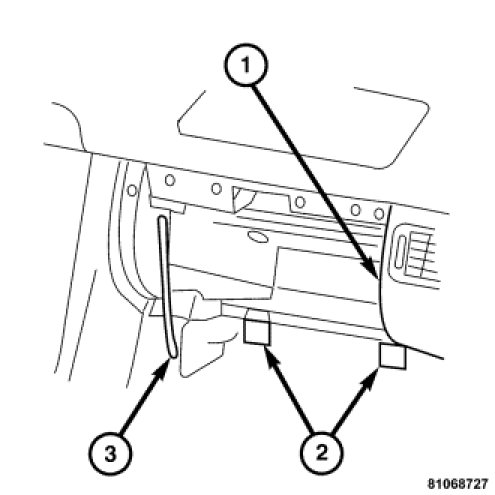

4. Install the glove compartment to the hinges (2). Instrument Panel Glove Box - Installation.




5. Install the ashtray with the stowage compartment (1) on the center console. Center Console - Installation.




6. Install the center console cover (1). Center Console - Installation.

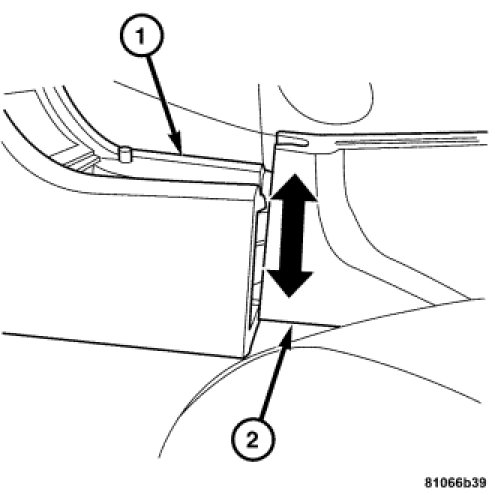

7. Install the rear center console (2). Center Console - Installation.




8. Install the instrument cluster cover (1). Instrument Panel - Installation.




9. Install the lower instrument panel (2). Instrument Panel - Installation.
