Installation
INSTALLATION 1.

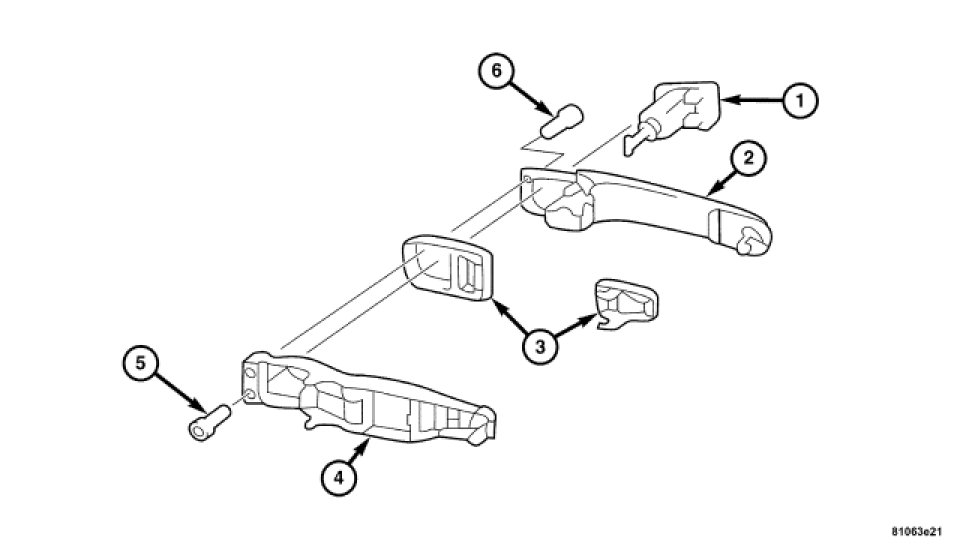

Install the lock cylinder and install the screw (1).
2.
Loosen the screw (1) and retighten without pulling or holding the door handle.
3.
Check the door lock release for proper function by closing the catch in the door latch with a suitable tool and releasing it with the door handle.
4.

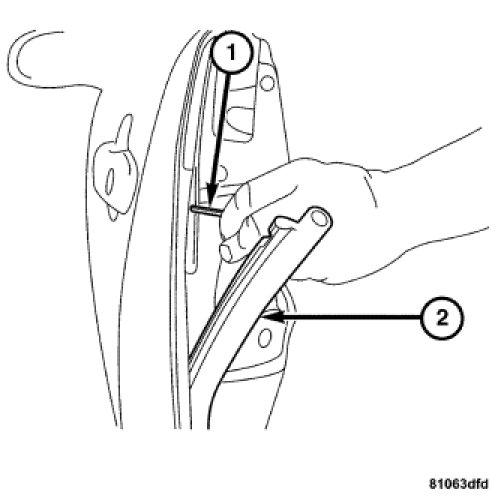

Insert the door
weatherstrip (2) into the channel.
5.
Check for proper door and handle function.
