Sentry Key Antenna Ring
SENTRY KEY ANTENNA RING 1.
Remove the instrument cluster.
Instrument Cluster - Removal.
2.

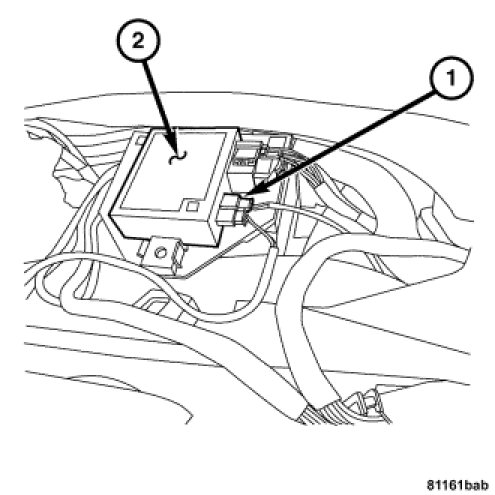

Disconnect the sentry key antenna ring electrical connector (1) from the sentry key remote entry module (2).
NOTE: Before disassembly, note the wire harness routing for proper reassembly. 3.

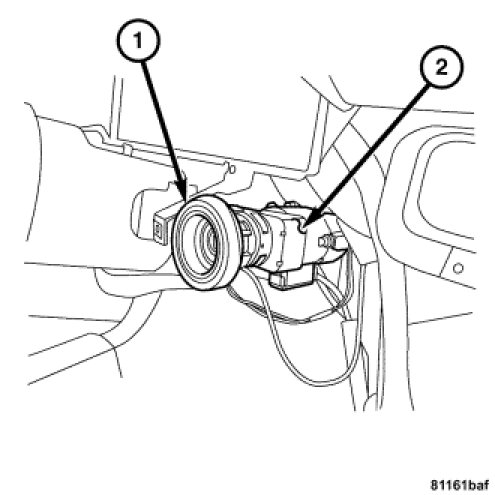

Pull to remove the sentry key antenna ring (1) from the ignition switch key cylinder (2).
