Standard Procedure - Hydraulic Line Connection







HYDRAULIC LINE CONNECTION





NOTE: The hydraulic lines must be replaced in pairs.

NOTE: Always replace all O-rings and metal snap rings when servicing the hydraulic lines.

1. Starting from the pump side of the hydraulic line (straight coupler), insert the new hydraulic line through the proper hole location on the line retention plate.

NOTE: The hydraulic line must be inserted into the proper cavity of the pump.

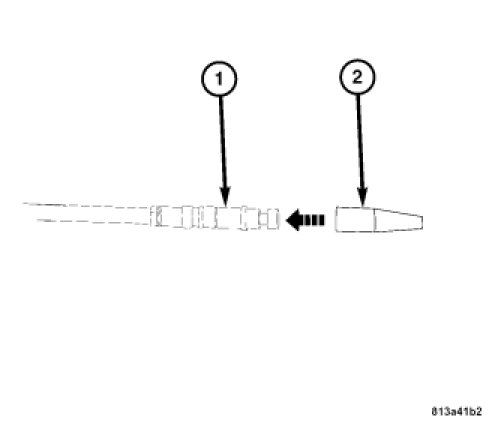

2. Slide the cone mechanism of Special Tool 9108 (2) onto the coupling end of the hydraulic line (1).

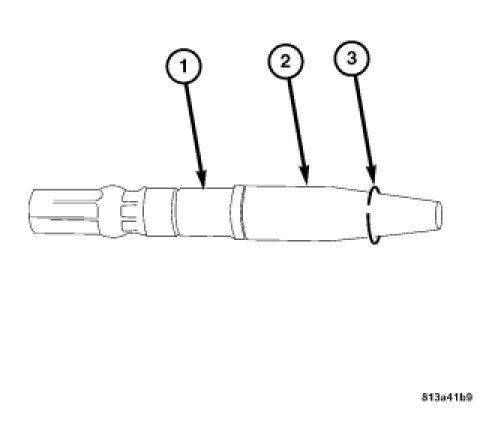

3. Slide a new metal snap ring (3) over the cone mechanism of Special Tool 9108 (2).

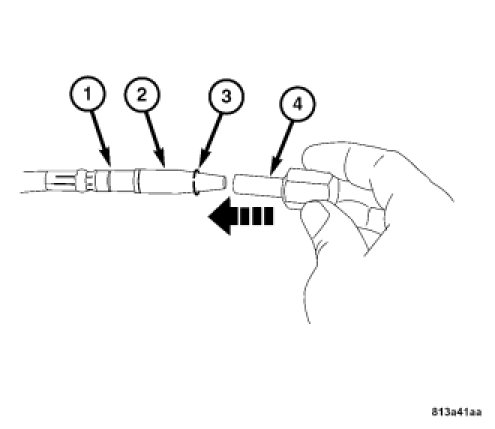

4. Using the Special Tool 9108 snap ring installer (4), push the metal snap ring (3) onto the coupling end of the hydraulic line (1).




5. Install the hydraulic line retaining plate to the hydraulic pump (2) Removal.

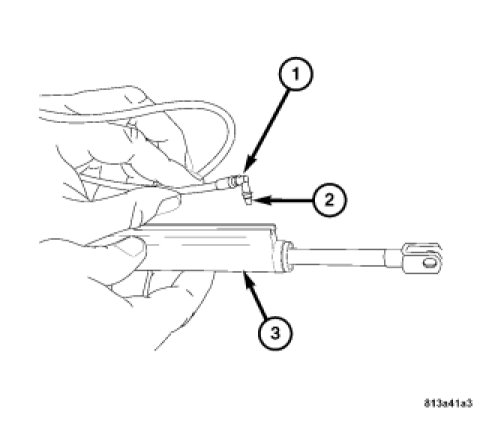

6. At the cylinder side of the hydraulic line, install a new O-ring (2) onto the hydraulic line coupling (1).
7. Insert the hydraulic line into the hydraulic cylinder (3).

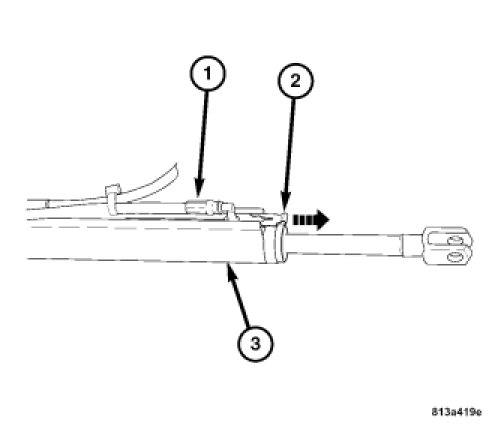

8. Slide the hydraulic line retaining clip (2) into the groove in the hydraulic cylinder (3).
