Linkage Assembly
LINKAGE ASSEMBLY 1.
Install the linkage assembly to the front bow (2). Tighten screws (1) to 10 Nm (89 in. lbs.).
2.

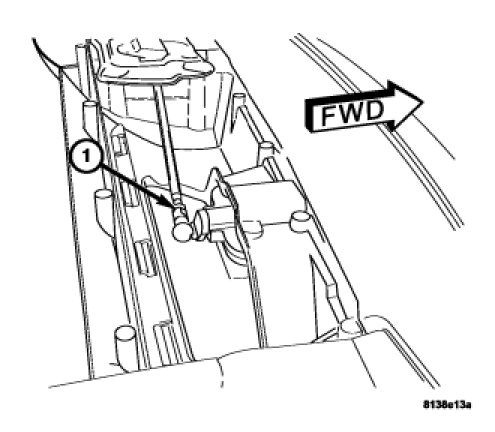

Connect the latch linkage to the latch assemblies (1).
3.
Install the release handle.
Installation.
4.
Reassemble the top cover.
Installation.
