Power Top Switch







POWER TOP SWITCH

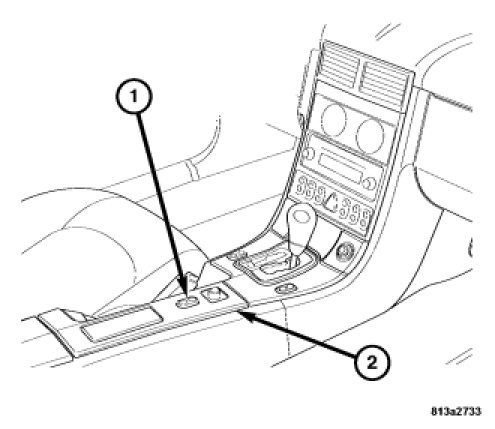

1. Install the power top switch (1) into the center console.
2. Connect the power top switch harness connector.
3. Install the center console (2). Center Console - Installation.
