Roof Open Switch







ROOF OPEN SWITCH





1. Install the roof open switch (1) into the top frame (2) and install the retaining screw.
2. Connect the latch retainer switch harness connector (3).




3. Install the cover side retainers to the top frame by sliding the retainer into the frame and pushing up to lock into place.
4. Install new retaining rivets (1) (left side shown, right side similar).

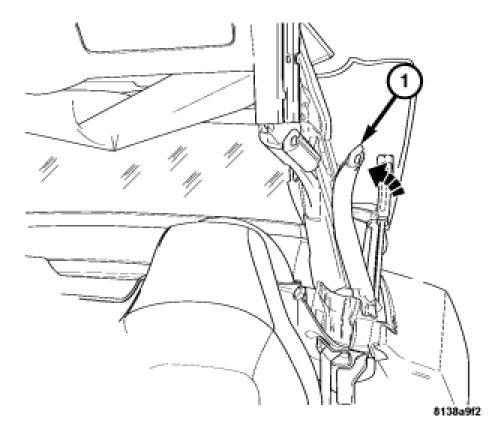

5. Install both rear side weather strips (1) (left side shown, right side similar).
6. Connect both of the front cover support cables (left side shown, right side similar).




7. Install the cover support cables (1) into the cover (2) (left side shown, right side similar).




8. Manually place the top in the upright position.

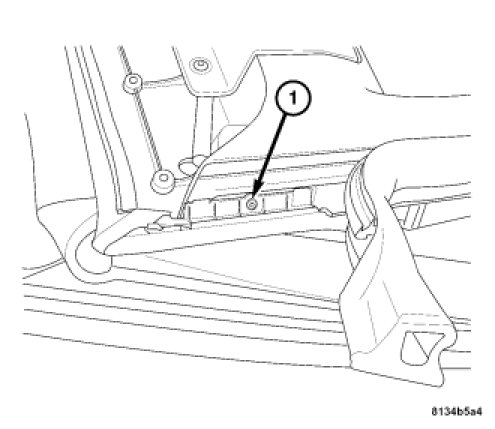

9. Attached the front cover retaining straps with new rivets (1) (one each side) (left side shown, right side similar).

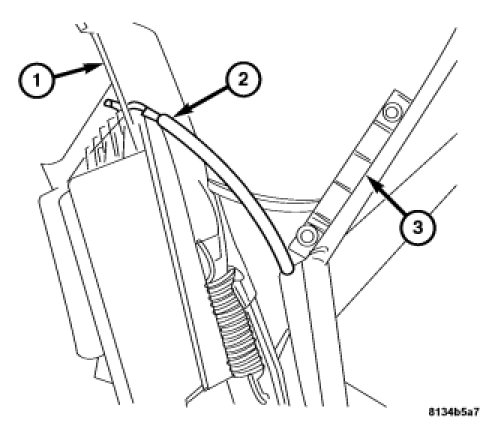

10. Connect the cover support cables (2) to the front bow (1) (left side shown, right side similar).




11. Install the top to the front bow.
12. Lower the top assembly into the storage area.

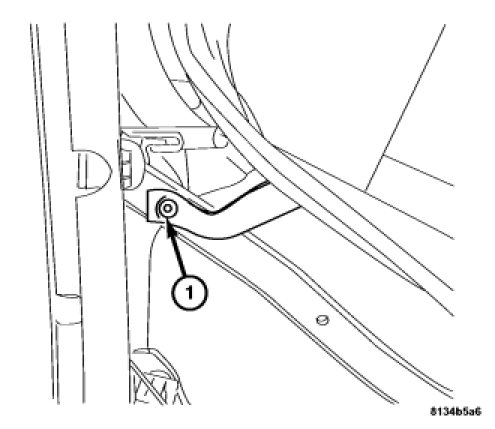

13. Install the front bow side cover retainer rivets (1) (one on each side) (left side shown, right side similar).




14. Install the front side weather strips (1).

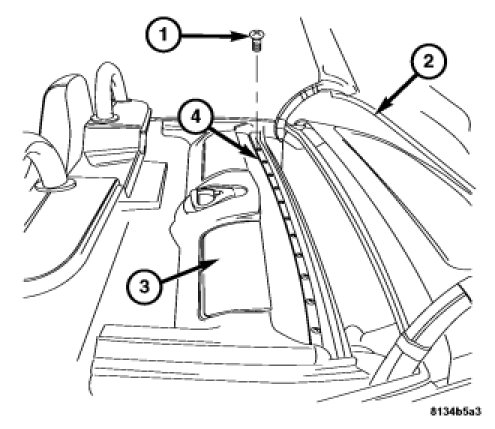

15. Install the front cover retainer (4) and retaining screws (1).
16. Lower tonneau cover down and manually lock into place. Convertible Top - Standard Procedure.
17. Connect the negative battery cable.
