Rear Riser Motor - Installation







INSTALLATION





1. Position the rear riser motor between the front and rear attachment brackets.

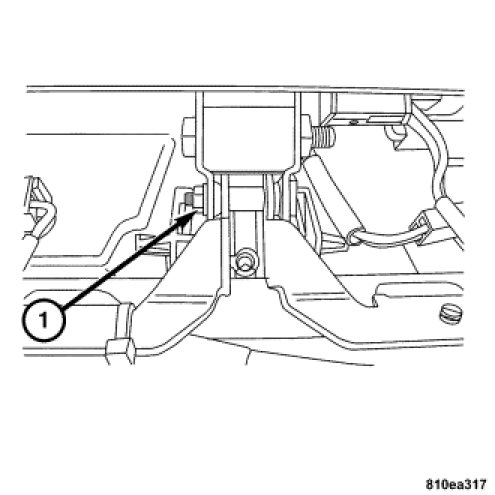

2. Install the rear riser motor rear attachment bolt (1). Tighten the motor bolt to 4 Nm (35 in. lbs.).

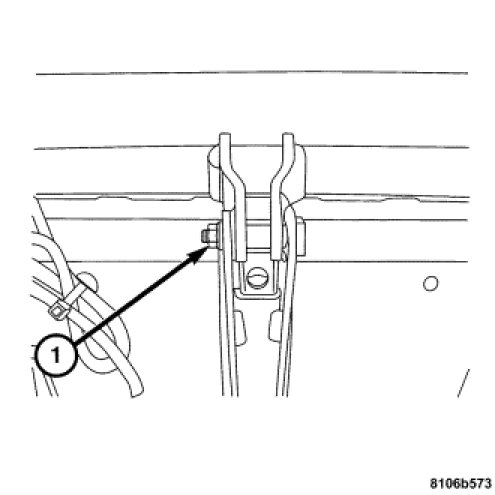

3. Install the rear riser motor front attachment bolt (1). Tighten the bolt to 4 Nm (35 in. lbs.).
4. Connect the rear riser motor harness connector.

NOTE: Insure the harness is routed and secured in its original position to avoid potential interference with moving parts.

5. Install the front seat. Seat - Installation.
6. Connect the negative battery cable.
