Recliner Motor - Installation







INSTALLATION





NOTE: Insure the rubber mount for the attachment bolt is seated properly.

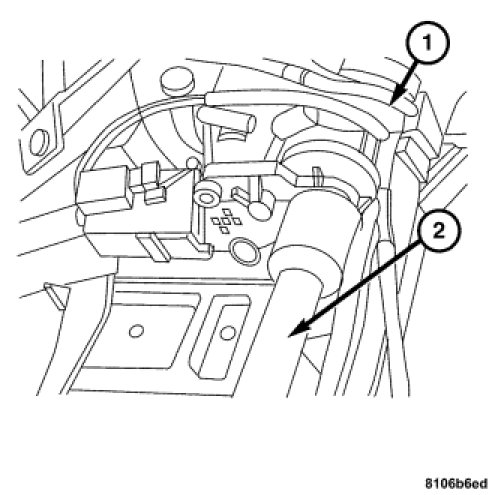

1. Install the shaft (2) to the seat back frame (1) and install the snap ring.

NOTE: Insure the harness is routed and secured in its original position to avoid potential interference with moving parts.

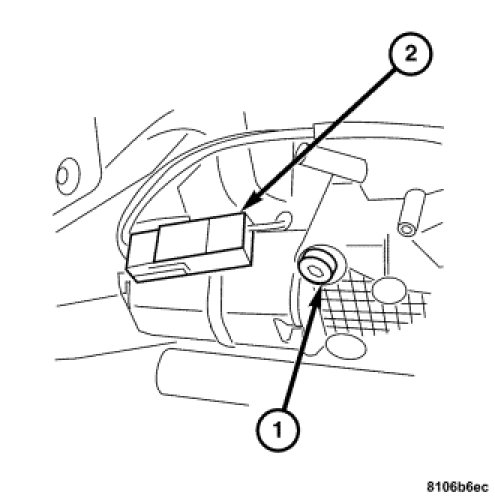

2. Position the recliner motor to the seat back frame and install the attachment bolt (1). Tighten the motor bolt to 4 Nm (35 in. lbs.).
3. Connect the recliner motor harness connector (2).
4. Install the seat back cover. Seat Back Cover - Installation.
5. Connect the negative battery cable.
