Power Seat Switch - Installation







INSTALLATION





NOTE: Insure the harness is routed and secured in its original position to avoid potential interference with moving parts.

1. Install the power seat switch wiring harness in its original location.

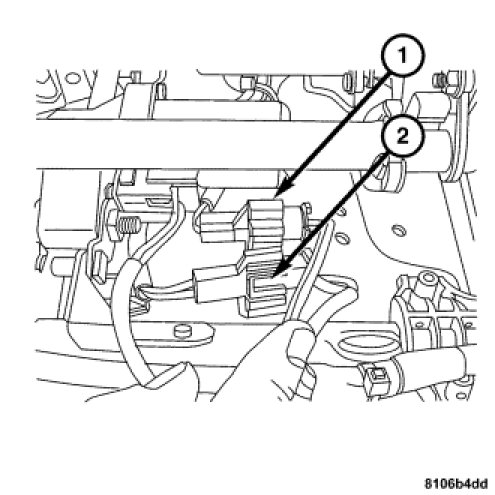

2. Connect the power seat switch harness connectors (1) and (2).

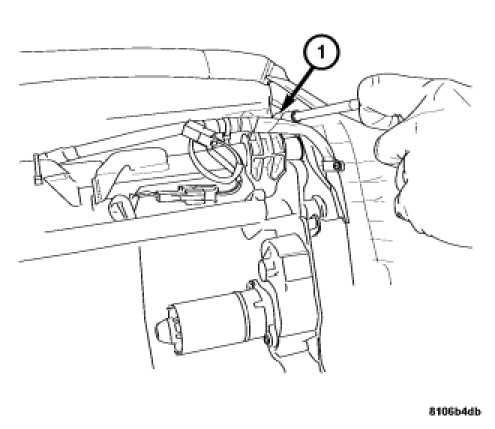

3. Position the side panel with the switches as one part on the seat base, then install the side panel attaching screw (1).
4. Install the front seat. Seat - Installation.
5. Connect the negative battery cable.
