Power Seat Switch - Removal
REMOVAL 1.
Remove the front seat.
Seat - Removal.
2.
Remove the bolt (1) attaching the side panel to the seat base.
3.

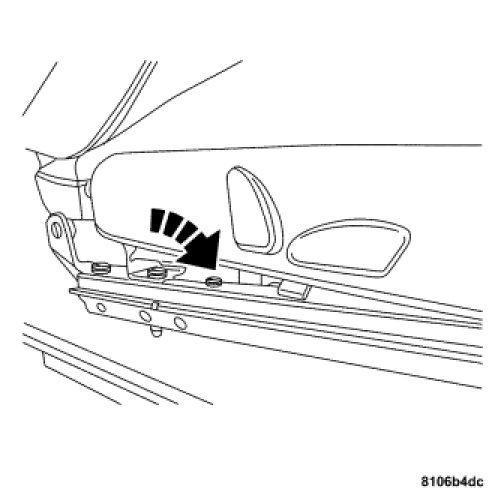

Push the side panel with the switches forward and downward to remove.
4.
Disconnect the
power seat switch harness connectors (1) and (2).
5.
Separate the cable straps and expose the wiring harness.
6.
Remove the side panel with switches from the seat base.
