Seat - Installation







INSTALLATION





1. Install the seats into the vehicle.
2. Connect the electrical connectors for the seat heater and the electrical seat adjustment (if equipped).

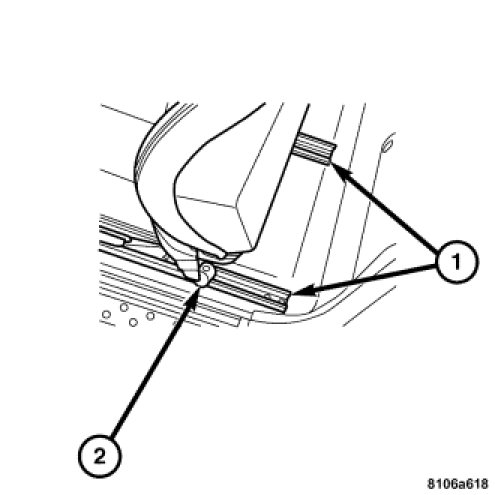

3. Insert the bolts (1) in the bolt holes in the rear of the seat track.
4. Tighten the two rear seat track bolts (1). Tighten to 50 Nm (37 ft. lbs.).
5. Install the belt end fitting to the seat adjuster.

NOTE: Tighten the bolt for the belt end fitting only so that it can be moved.

6. Install the bolt (2) at the belt end fitting. Tighten to 35 Nm (26 ft. lbs.).
7. Move the seat all the way backwards.

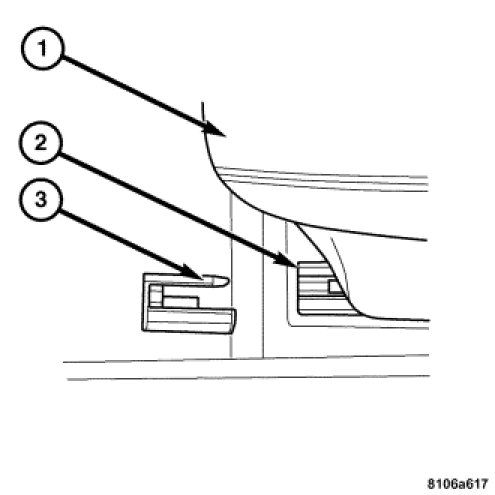

8. Install the two front seat track bolts (2). Tighten to 50 Nm (37 ft. lbs.).
9. Install the plastic covering (3) to the seat tracks.
