Driver Power Seat Horizontal Motor Inoperative







*DRIVER POWER SEAT HORIZONTAL MOTOR INOPERATIVE

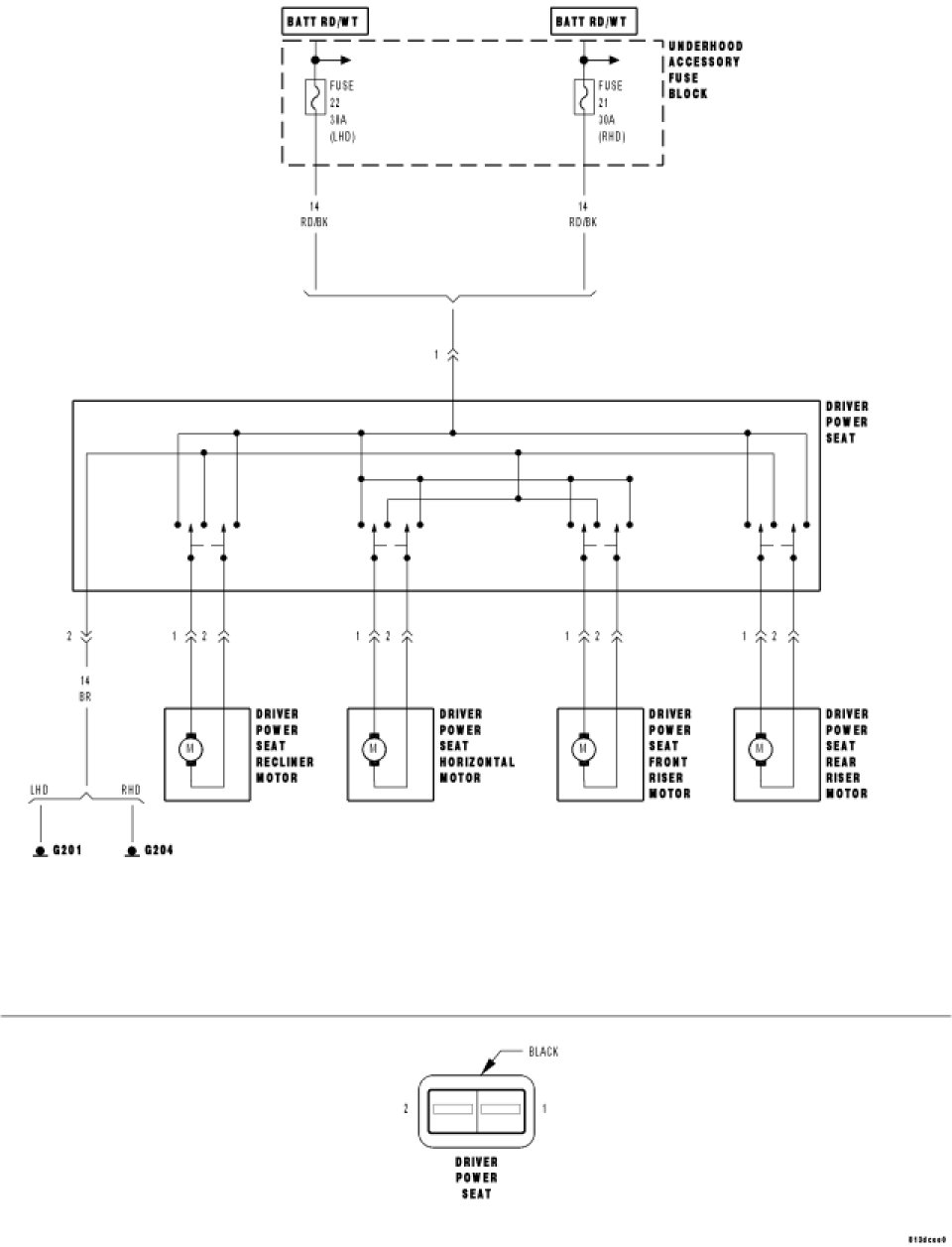

For a complete Power Seats Circuit Diagram, Schematics and Diagrams.

Diagnostic Test

1. TEST THE DRIVER POWER SEAT HORIZONTAL MOTOR




Turn the ignition off.
Disconnect the Driver Power Seat Horizontal Motor harness connector.

NOTE: Check connectors - Clean/repair as necessary.

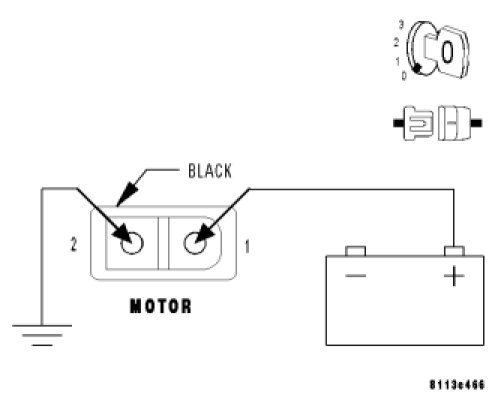

Connect a jumper wire from B(+) to one cavity of the Driver Power Seat Horizontal Motor connector (motor side).
Connect a second jumper wire from ground to the other cavity of the Driver Power Seat Horizontal Motor connector (motor side).
Note seat movement, if no seat movement is noted, reverse the jumper wires at the Horizontal Motor connector.
Did the Driver Power Seat move backward or forward?

Yes

- Replace the Driver Power Seat Switch. Power Seat Switch - Removal.
- Perform BODY VERIFICATION TEST. Body Verification Test

No

- Replace the Driver Power Seat Horizontal Motor. Horizontal and Front Riser Motors - Removal.
- Perform BODY VERIFICATION TEST. Body Verification Test
