Installation
INSTALLATION 1.

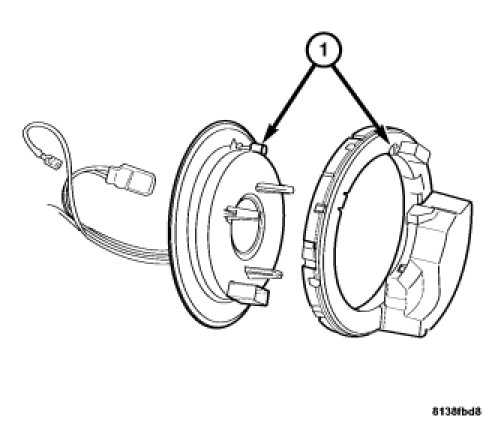

Locate and align the alignment points on the component housings (1).
2.
Install the
steering angle sensor to the clockspring.
3.

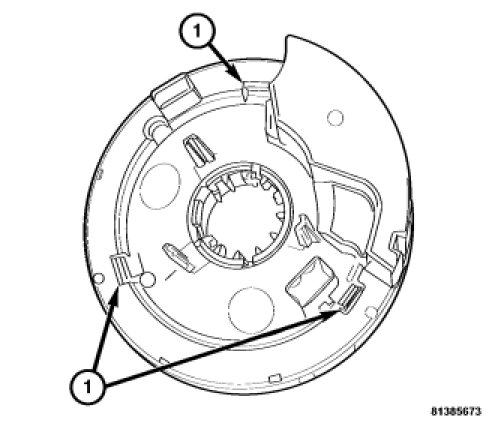

Snap the
steering angle sensor retaining tabs (1) onto the clockspring.
4.
Install the clockspring onto the steering column.
Installation.
