Rear Wheel Speed Sensor - Installation
INSTALLATION 1.

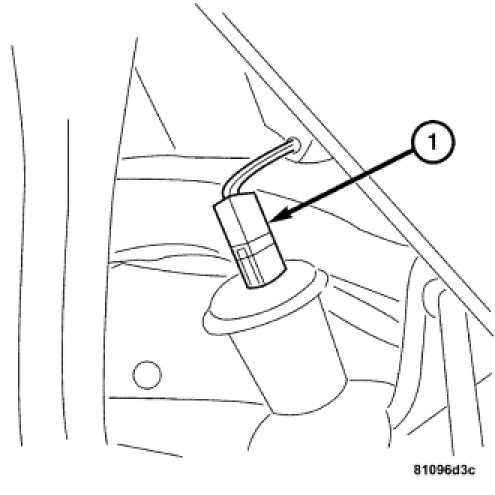

Connect the
wheel speed sensor wire harness connector (1).
2.

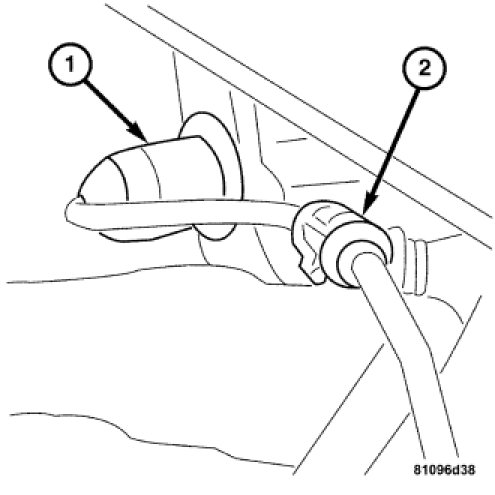

Install the rubber grommet (1) to the body and then hook the
wheel speed sensor wire harness to the mount (2).
3.

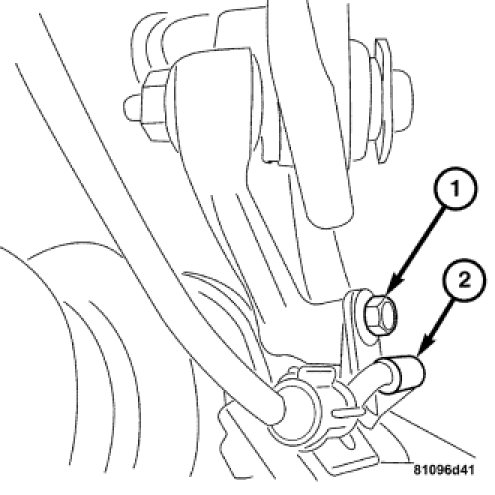

Install the
wheel speed sensor (2) to the knuckle.
4.
Install the bolt (1) attaching the
wheel speed sensor to the knuckle. Tighten to 12 Nm (106 in. lbs.).
