Travel Sensor - Installation
INSTALLATION 1.
Insert a new O-ring into the groove in the brake booster and ensure that it is correctly seated.
2.
Rub some soapy water onto the front of the diaphragm travel sensor so that the O-ring does not bind when inserted.
3.

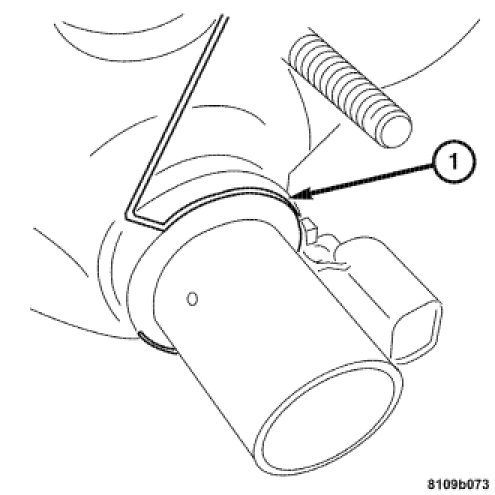

Replace locking ring (1) and ensure that it is correctly seated.
4.
Connect the electrical harness connector to the travel sensor.
