Active Spoiler Motor

Component ID: 239

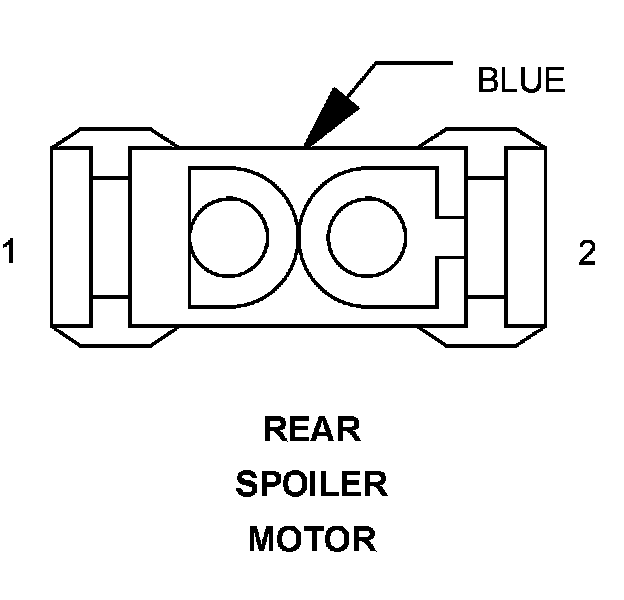

Component : REAR SPOILER MOTOR

Connector:
Name : REAR SPOILER MOTOR
Color : BLUE
# of pins : 2

Pin Circuit Description
1 16BR/WT REAR SPOILER DRIVER (UP)
2 16RD/WT REAR SPOILER DRIVER (DOWN)
