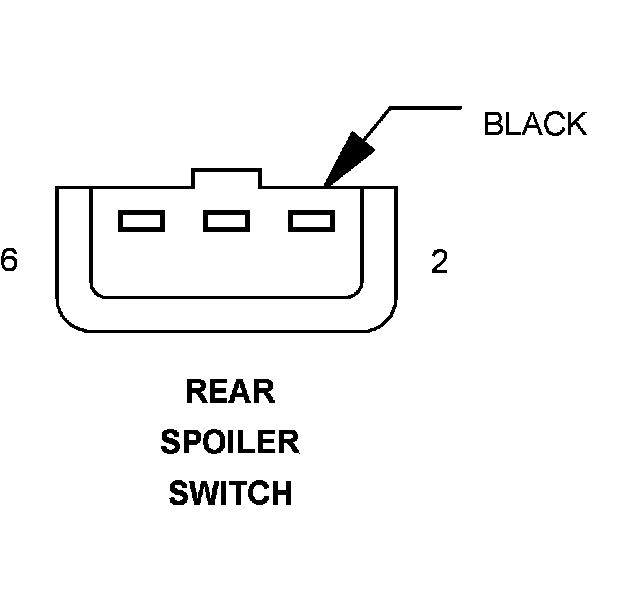

Rear Spoiler Switch

Component ID: 240
Component : REAR SPOILER SWITCH

Connector:
Name : REAR SPOILER SWITCH
Color : BLACK
# of pins : 3

2 20GY/WT REAR SPOILER DIAGNOSTIC LED CONTROL
4 - -
6 20DG/WT REAR SPOILER SWITCH SENSE
