Module-Occupant Classification

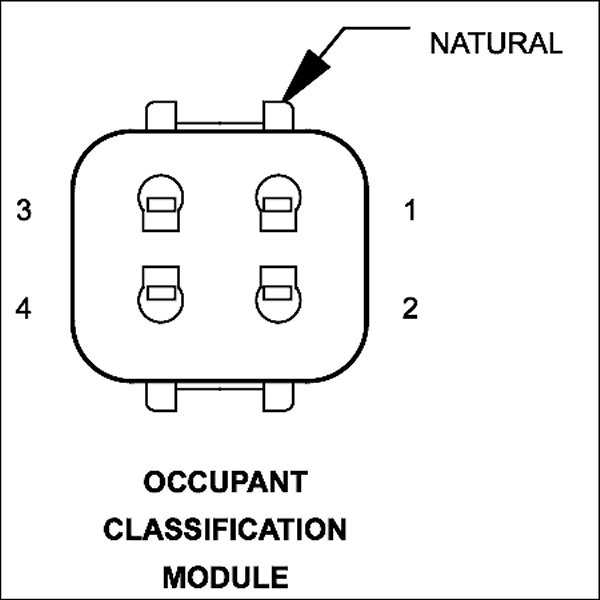

OCCUPANT CLASSIFICATION MODULE (OCM) - 4 WAY CONNECTOR

Pin Circuit Function

1 20RD/YL FUSED B(+)

2 20BR GROUND

3 20WT/DG CAN INTERIOR BUS (125K)(+)

4 20BK/DG CAN INTERIOR BUS (125K)(-)
