Air Bag Deactivation Switch




Component ID: 215
Component : PASSENGER AIRBAG ON/OFF SWITCH

Connector:

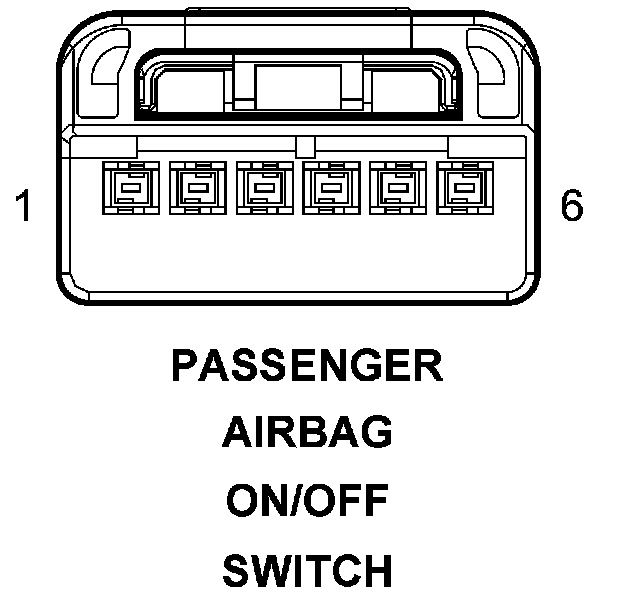

Name : PASSENGER AIRBAG ON/OFF SWITCH
Color :
# of pins : 6




Pin Circuit Description
1 20BL/WT AIRBAG ON/OFF SWITCH SENSE (ON)
2 20GY AIRBAG ON/OFF SWITCH SENSE (OFF)
3 20BR GROUND
4 - -
5 - -
6 - -
