Audible Warning Device

Component ID: 169

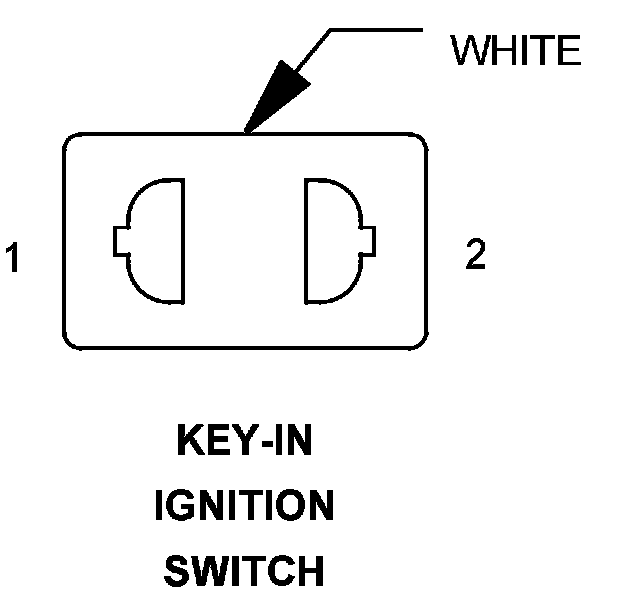

Component : KEY-IN IGNITION SWITCH

Connector:
Name : KEY-IN IGNITION SWITCH
Color : WHITE
# of pins : 2

Pin Circuit Description
1 20BR/GY KEY-IN IGNITION SWITCH SENSE
2 20RD/YL FUSED B(+)
