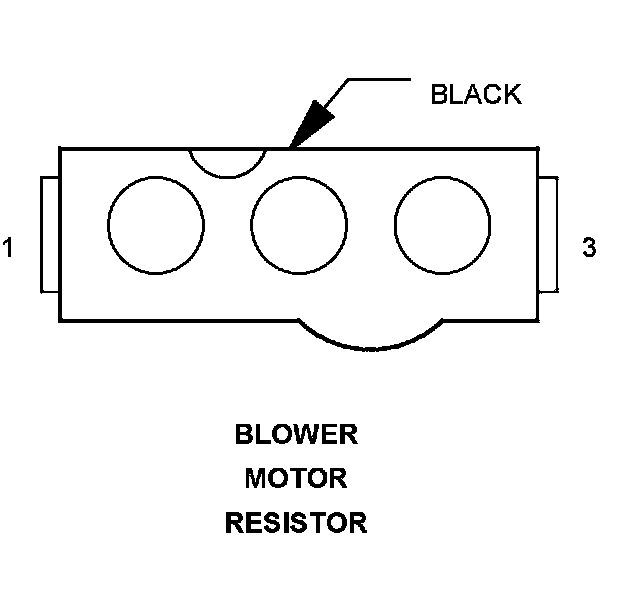

Blower Motor Resistor

Component ID: 17
Component : BLOWER MOTOR RESISTOR

Connector:
Name : BLOWER MOTOR RESISTOR
Color : BLACK
# of pins : 3

Pin Circuit Description
1 14BR BLOWER MOTOR GROUND
2 20WT/PK BLOWER MOTOR CONTROL
3 14RD FUSED B(+)
