Brake Fluid Pressure Sensor/Switch
Component ID:
87

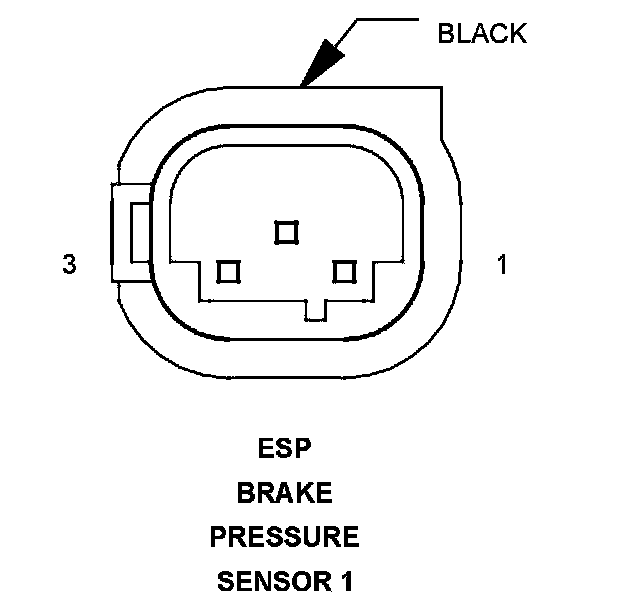

Component :
ESP BRAKE PRESSURE SENSOR 1
Connector:
Name :
ESP BRAKE PRESSURE SENSOR 1
Color :
BLACK
# of pins :
3
Pin Circuit Description 1
20BR/BL
SENSOR GROUND
2
20BL/WT
ESP BRAKE PRESSURE SENSOR 1 SIGNAL
3
20BK/RD/WT
5 VOLT SUPPLY
