C100

Component ID: 22
Component : C100

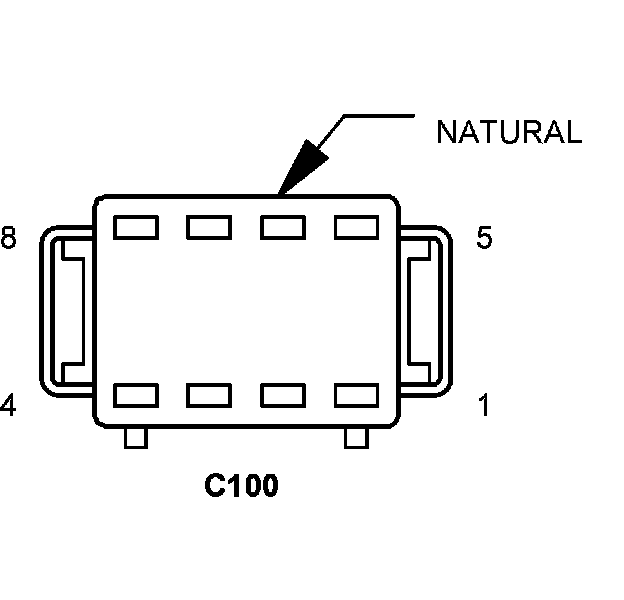

Connector:
Name : C100
Color : NATURAL
# of pins : 8
Gender : FEMALE




Pin Circuit Description
1 18BK/WT LEFT TAIL LAMP OUTPUT
Pin Circuit Description
1 18BK/WT LEFT TAIL LAMP OUTPUT
2 18BK/DG RIGHT TAIL LAMP OUTPUT
2 18BK/DG RIGHT TAIL LAMP OUTPUT
3 22GY/BK DOOR UNLOCK SWITCH SENSE
4 22GY/RD RKE STATUS OUTPUT
5 16PK/YL/DG FUSED IGNITION SWITCH OUTPUT
6 18PK/RD/WT FUSED B(+)
7 20WT/DG CAN INTERIOR BUS (125K) (+)
7 20WT/DG CAN INTERIOR BUS (125K) (+)
8 20BK/DG CAN INTERIOR BUS (125K) (-)
8 20BK/DG CAN INTERIOR BUS (125K) (-)

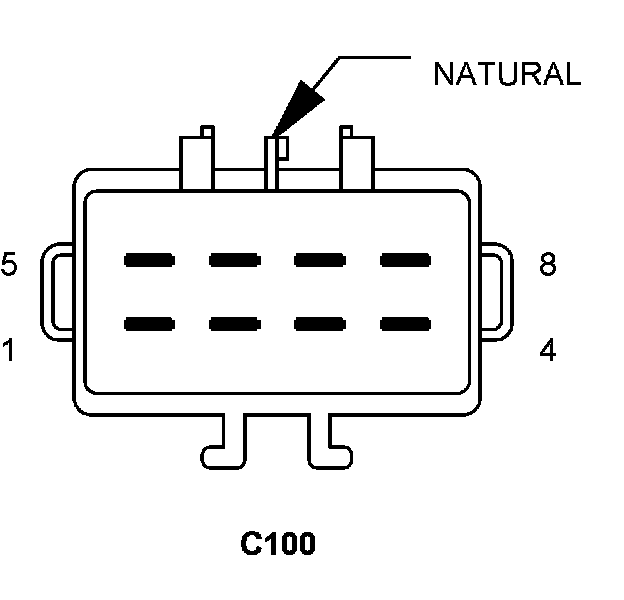

Connector:
Name : C100
Color : NATURAL
# of pins : 8
Gender : MALE




Pin Circuit Description
1 18BK/WT LEFT TAIL LAMP OUTPUT
2 18BK/DG RIGHT TAIL LAMP OUTPUT
3 22GY/BK DOOR UNLOCK SWITCH SENSE
4 22GY/RD RKE STATUS OUTPUT
5 16PK/YL/DG FUSED IGNITION SWITCH OUTPUT
6 18PK/RD/WT FUSED B(+)
7 20BK/YL CAN INTERIOR BUS (125K) (+)
8 20BK/DG CAN INTERIOR BUS (125K) (-)
